Battery status at a glance.

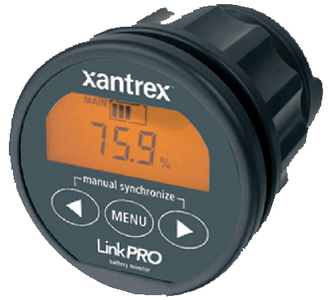

LinkPRO provides advanced, accurate battery status on a large, backlit LCD display (voltage, amps, amp hours), plus advanced and historical data on the functional health of one battery bank. A second input allows you to monitor voltage only on a second battery bank. Calculates time remaining until battery is fully discharged. Configurable low and high voltage battery alarm with trigger relay for controlling external equipment and shutting off devices when the voltage exceeds programmable boundaries. Includes 500A shunt with shielded cable. Optional components include a Temperature Sensor with 32' cable (Special Order, Xantrex 854-2022-01) and a Monitor Cable (Special Order Xantrex 854-2021-01).
The LinkPRO can measure currents up to 10,000 Amps. It selectively displays voltage, charge and discharge current, consumed amp hours, remaining battery capacity and the time remaining of your battery bank. It is equipped with an internal programmable alarm relay, to run a generator when needed or to turn off devices when the battery voltage exceeds programmable boundaries.
Defining the amount of energy available in a battery is a complex task since battery age, discharge current and temperature all influence the actual battery capacity. High performance measuring circuits, along with complex software algorithms, are used to exactly determine the remaining battery capacity. A new shunt selection feature enables the LinkPRO to measure currents up to 10,000 Amps.
The LinkPRO selectively displays voltage, charge and discharge current, consumed amphours, remaining battery capacity and the time remaining of your battery bank. Using a clear backlit LCD Display and an intuitive user interface, all parameters can be recalled with just a button press. A second battery input is also provided to monitor voltage on a second battery.
It is equipped with an internal programmable alarm relay, to run a generator when needed or to turn off devices when the battery voltage exceeds programmable boundaries.
Key Features
- Provides critical information about the status of your battery bank
- Displays voltage, current, consumed amp hours and remaining battery capacity
- Secondary battery bank voltage monitoring
- Auto sensing battery voltage inputs
- Large backlit LCD Display
- Quick nut mounting construction
- Programmable alarm relay
- Shunt selection capability enables flexible system integration
- Splash proof front panel
- 500 Amp shunt included
- CE and e-mark certified
LinkPRO Additional Performance Features
- Displays time remaining
- Communication/expansion port
- Stores a wide range of history events in internal memory
- Advanced programmable alarm relay
- Battery temperature sensor input
Specifications
- Functions: Volts, Amps, Amp hours, state of charge, Low battery alarm
- Display Type: Multi-function LCD
- Input Current Range: -9999 to +9999A
- Battery Capacity Range: 20 to 9990A
- Main Battery: 0-35V DC
- Auxiliary Battery: 2-35V DC
- State-of-Charge: ± 0.1%
- Time to Go: (0 to 99 hrs.) ± 1 minute; (100 to 240 hrs) ± 1 hour
- Amp Hours: Low range: 0-99Ah (+/- 0.1Ah), High range: 100-999Ah (+/- 1Ah)
- Amps: Low range: 0-99A, High range: 100-9999A (+/- 1A)
- Volts: 12V or 24V systems (9-35V supply voltage)
- Mounting Hole Size: 2 1/16" to 2 1/8" dia. (52-54mm)
- Waterproof Rating: Front panel rated IP65
- Amperage: 9mA (12V), 7mA (24V)
- Monitor Dimensions: Front panel 2.54" dia., Body dia. 2.05" x 3.11"L
- Shunt Dimensions: Footprint-1.77" x 3.43"; Height-0.67” (17 mm) base / 1.38” (35 mm) terminal bolts
- Warranty: One year
