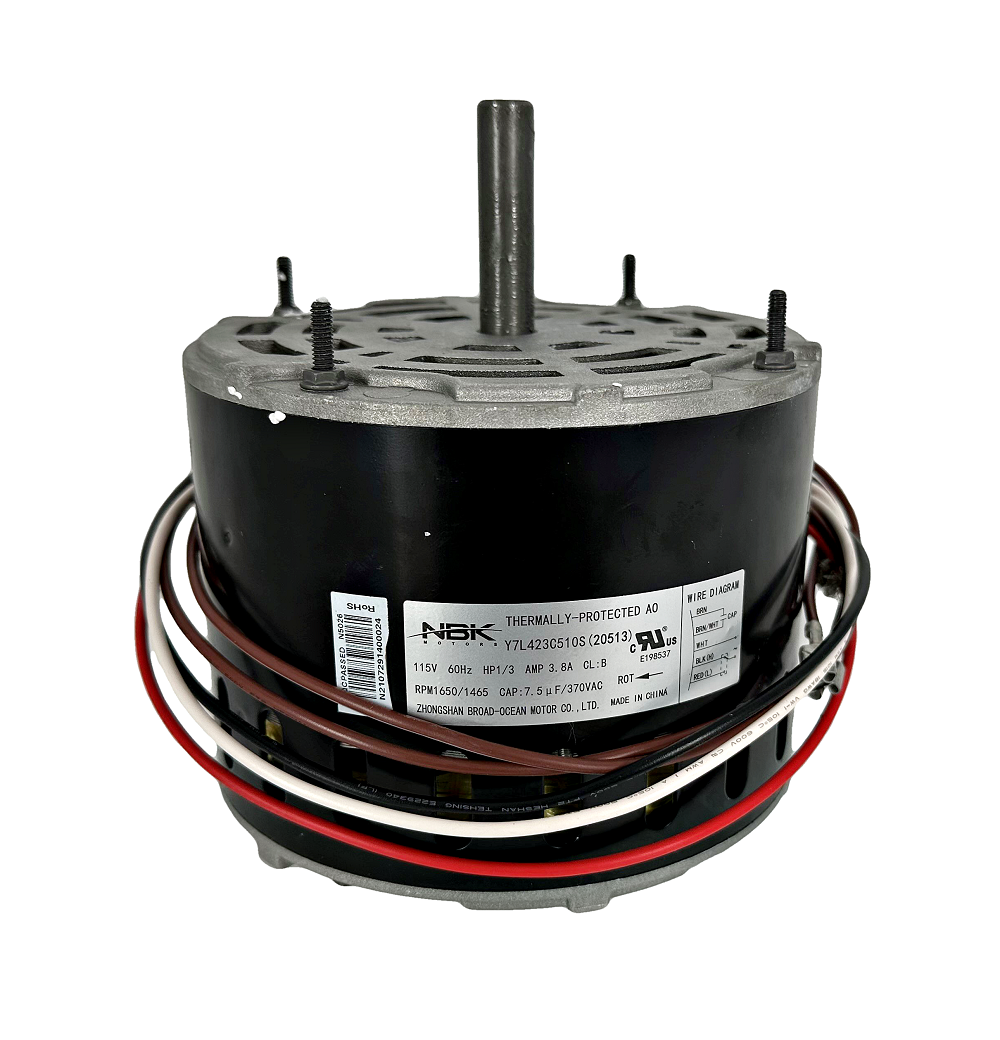

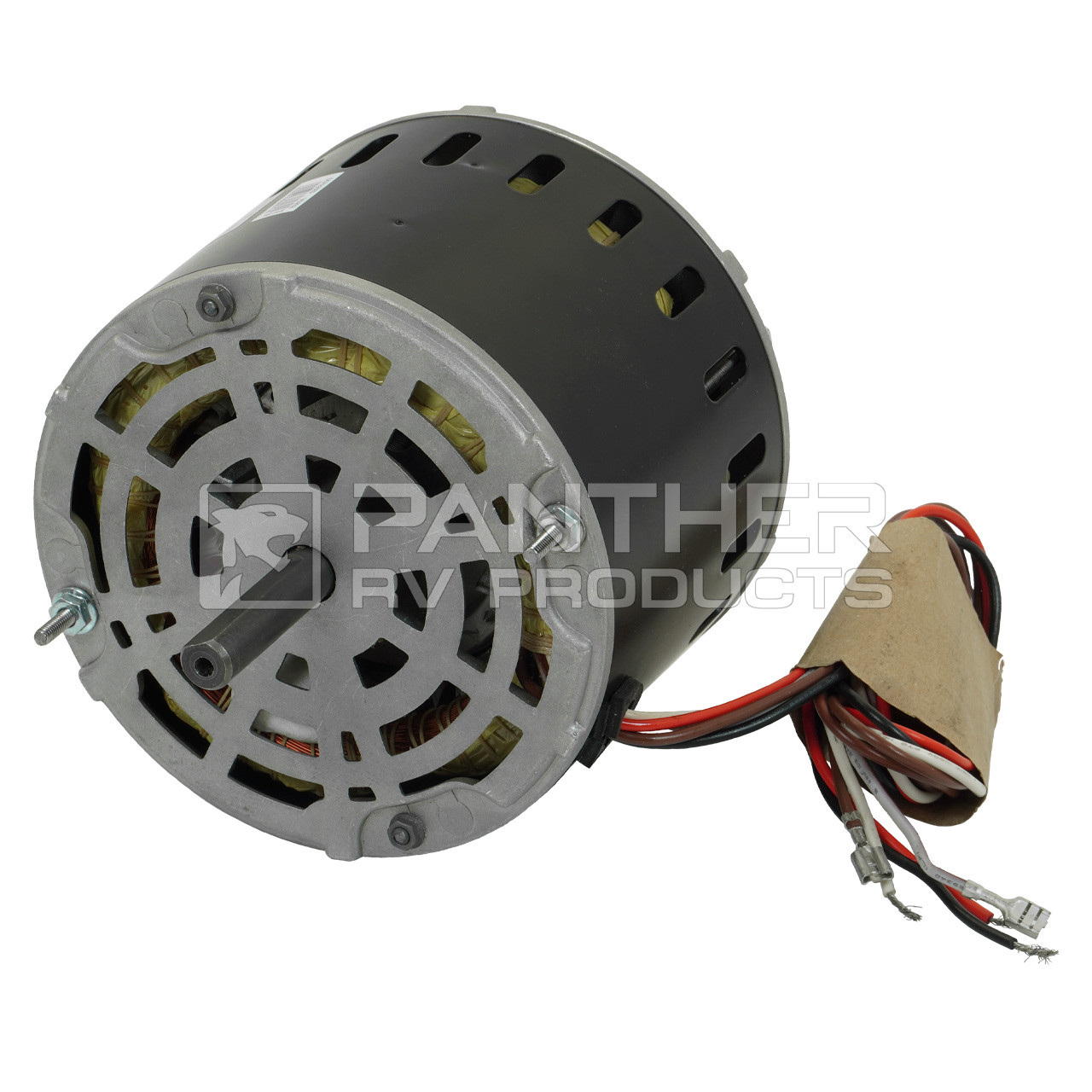

The Coleman 1468B3239 is a replacement evaporator fan motor designed for Coleman Mach 9000 Series RV rooftop air conditioners. This motor powers the fan and blower wheel that circulates air through your RV's air conditioning system, providing reliable cooling performance during travel and camping.
Technical Specifications:
- Power: 1/3 HP, 115 Volts, 60Hz, 3.8 Amps
- Speed: Dual speed motor - 1650/1465 RPM
- Motor Type: PSC (Permanent Split Capacitor)
- Rotation: CCW (counterclockwise when viewing)
- Shaft Configuration: Double shaft - 1/2" x 1/2" with C-clamp (enclosed end) and 1/2" x 2" (open end)
- Motor Diameter: 5.58 inches
- Bolt Pattern: 4-bolt mounting on 3.75" centers
- Capacitor Required: 7.5 µF x 370 Volts (not included)
Compatibility: Direct replacement for part numbers 1468B3239, 1468A3239, 1468B323, 1468A323, and 20153. Fits Coleman Mach models 9002, 9003, 9013, 9014, 9022, 9023, 9024, 9032, 9033, 9034, 9201, 9202, 9203, 9204, 9213, 9214, 9232, 9233, 49003, 49004, 49013, 49014, 49023, 49024, 49033, 49203, 49204, 49213, 49214, 49223, and 49224.
Designed for extended operation at high speeds, this sealed bearing motor provides low noise, low maintenance, and high reliability in the demanding conditions of RV travel.
