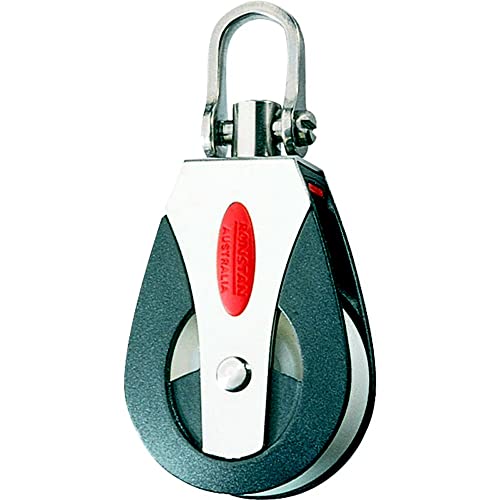

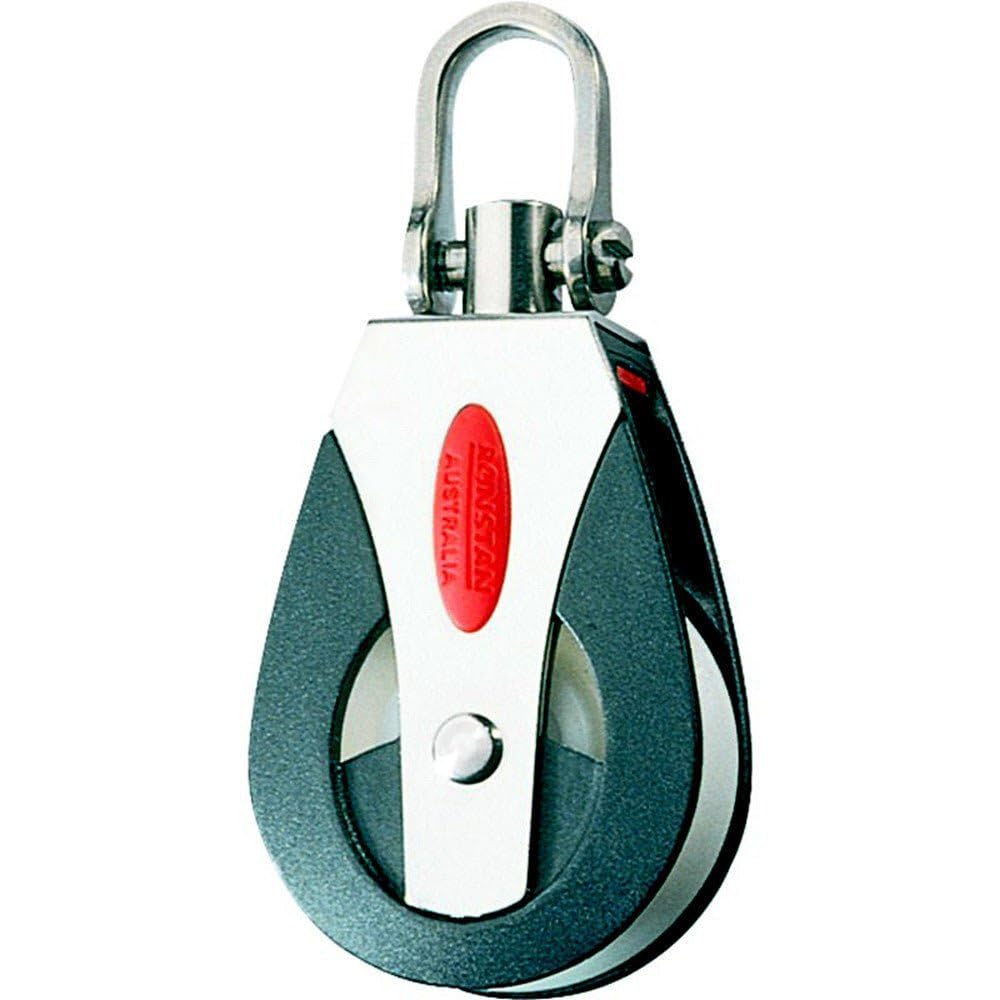

Ronstan RF40100 Series 40 Ball Bearing Block Single with Universal Head

Manufacturer

Ronstan

Picture for manufacturer Ronstan

Part Number

RF40100
13 reviews
04/02/2036 11:09 PM
Sale Price

$24.04

4 left at this price

delivery box

Usually delivered within 2 days

Add To Cart

Check out with

ApplePay
Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Ronstan Series 40 Ball Bearing Block is a high-performance single block featuring a 2-stage ball bearing system that delivers consistent low-friction operation across the full load range. The sheaves run on Acetal ball bearings for smooth performance and reliability in marine applications.

Key Features:

  • Low-friction Acetal bearing system for smooth operation
  • Captive Lock universal head can be fixed in two planes or left free to swivel
  • Lightweight design at just 2.5 oz (70g)
  • Cheek cut-outs provide easy access for bearing maintenance
  • Slotted pin shackle prevents line fouling
  • 40mm (1-9/16") sheave diameter accommodates rope up to 10mm (7/16")

Construction:

  • U.V. stabilized Acetal sheaves with Acetal ball bearings
  • Impact and U.V. resistant fiber-reinforced Nylon cheeks
  • Grade 316 stainless steel load strap and head fitting
  • Maximum Working Load: 350kg (770 lbs)
  • Breaking Load: 1,000kg (2,200 lbs)

Applications: Ideal for mainsheet, halyard, vang, and spinnaker control lines on off-the-beach catamarans, one-design classes, and sportsboats up to 8M (26'). The universal head design provides versatile mounting options for various rigging configurations.

Specifications: Sheave Diameter: 40mm (1-9/16") | Max Rope Diameter: 10mm (7/16") | Pin Diameter: 5mm (3/16") | Weight: 70g (2.5 oz)
