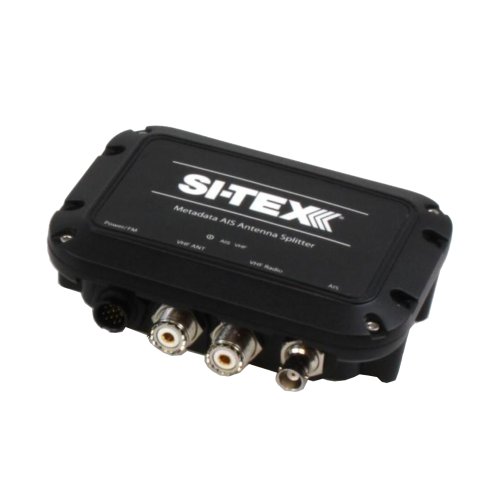

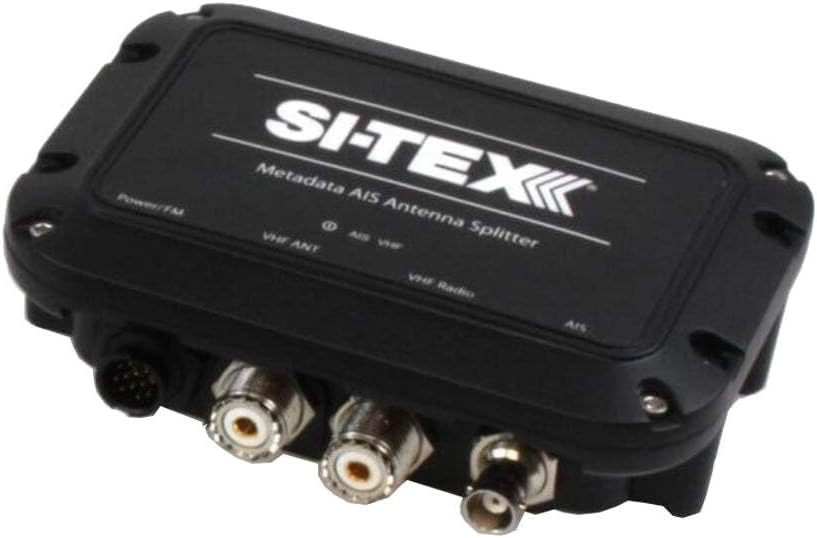

Si-Tex MDA-3 Metadata Zero Loss AIS Antenna Splitter Class B

The Si-Tex MDA-3 Metadata AIS Zero Loss Antenna Splitter enables full VHF communications and AIS send/receive functionality through a single antenna connection. This sophisticated splitter is specifically designed for use with Class B AIS transceivers, delivering optimum performance for both AIS and VHF radio operation in all marine conditions.

Key Features:

• Zero loss design maintains existing VHF reception range and performance
• Clear Call Routing (CCR) technology ensures VHF emergency call priority
• Compact waterproof module (5.5" x 3.9" x 1.9") with IPx7 rating for flexible mounting
• Continues full-performance operation even during power failure
• Compatible with FM broadcast reception
• Silent mode switch input for flexible operation

Technical Specifications:

• Power input: 12 to 24V DC
• Power consumption: 150mA at 12VDC, less than 2W average
• Waterproof rating: IPx7
• Dimensions: 5.5" x 3.9" x 1.9"

Included Components:

• MDA-3 antenna splitter module
• 2-meter power and FM cable
• 1-meter accessory cable
• User manual and quick start guide
• Product CD
• Mounting screws

The advanced electronics in this rugged splitter ensure no signal loss, making it an ideal solution for vessels requiring both VHF and AIS functionality without compromising performance or safety.
