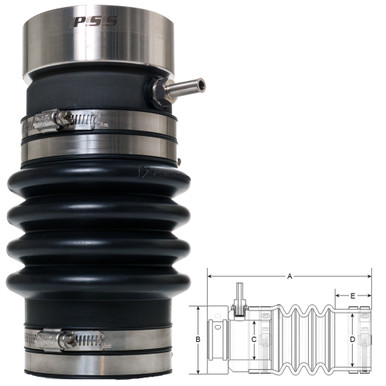

PYI 02-200-300 PSS Type A Dripless Shaft Seal for 2" Propeller Shaft

The PYI PSS (Packless Sealing System) Type A Shaft Seal is the number one selling marine mechanical seal worldwide, installed as standard equipment by leading boat builders and recognized by the U.S. Coast Guard, ABS, RINA, and Bureau Veritas. This dripless shaft seal replaces traditional packing glands, eliminating constant dripping, needless bilge pumping, shaft wear, and ongoing maintenance.

How It Works:

The PSS creates a 100% watertight seal between a rotating 316 stainless steel rotor (mounted to the propeller shaft) and a stationary high-density carbon-graphite stator. The stator attaches to the vessel's stern tube via a flexible nitrile rubber bellow secured with hose clamps. When installed, the rotor compresses the spring-like bellow, maintaining constant contact between the mating faces to compensate for propeller thrust and shaft movement. The carbon stator is over-bored, allowing it to "float" around the shaft and compensate for misalignment and engine vibration.

Key Features:

• Designed for 2" diameter propeller shafts with 3" to 3-1/8" stern tube diameter
• Self-aligning carbon-graphite stator ensures 100% watertight operation
• Chemical and fuel resistant nitrile rubber bellow provides reliable sealing
• Two recessed O-rings seal the rotor to the shaft without experiencing wear during operation
• Includes hose barb fitting for venting or cooling water feed on vessels over 12 knots
• Can be installed as replacement for leaking packing glands or used as rudder shaft seal
• Eliminates shaft wear and minimizes corrosion
• Requires virtually no maintenance
• 3-year limited warranty

Technical Specifications:

• Shaft Diameter: 2"
• Stern Tube Diameter: 3" to 3-1/8"
• Total Length (Uncompressed): Approximately 9.03"
• Temperature Range: 5°F to 225°F (-15°C to 107°C)
• Pressure Limit: 15 PSI (1 BAR)
• Shaft RPM Limit: 10,000 RPM
• Rotor Material: 316 Stainless Steel (Nitronic 50 optional)
• Bellow Material: Molded Nitrile-PVC

The PSS shaft seal can be easily retrofitted to replace traditional packing and delivers maintenance-free, dripless operation for inboard marine propulsion systems.
