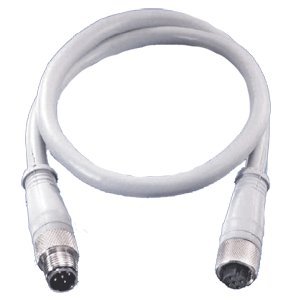

Maretron CM-CG1-CF-02.0 Micro Double-Ended NMEA 2000 Cordset Male to Female 2M Gray

The Maretron CM-CG1-CF-02.0 is a 2-meter (6.6 feet) NMEA 2000 certified micro double-ended cordset featuring male to female connectors with gray PVC jacketing. This marine-grade network cable is designed to extend or connect NMEA 2000 backbone cables and devices in harsh marine environments.

Key Features:

• NMEA 2000 certified cordset with micro male to female connectors
• 2-meter cable length ideal for extending network connections
• Triple-level shielding with foil protection on overall cable, power pair, and data pair
• 4-conductor 22 AWG cable with dedicated drain wire for superior signal integrity
• IEC IP68 and NEMA 1/3/4/6P rated for complete water and dust protection
• Wide temperature range from -40°F to 176°F (-40°C to 80°C)
• UL and CSA approved with sunlight resistant outer jacket
• Brass contacts with gold plating and nickel-plated brass coupling nuts
• Rated for 250V at 4.0 amps maximum current

The thermoplastic PUR molded connectors in blue-gray provide excellent durability and corrosion resistance, while the gray PVC outer jacket offers UV and sunlight protection. The HDPE data pair insulation and SRPVC power pair insulation ensure reliable data transmission and power delivery across your NMEA 2000 network. This cordset is perfect for creating custom network configurations or replacing damaged cables in marine electronics systems.
