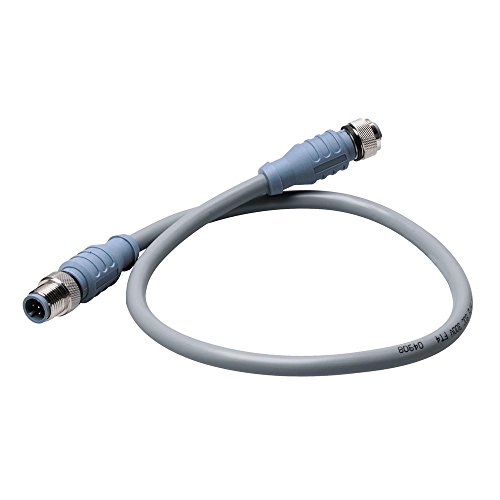

Maretron CM-CG1-CF-04.0 NMEA 2000 Micro Double-Ended Cordset 4 Meter Male to Female

The Maretron CM-CG1-CF-04.0 is a 4-meter NMEA 2000 certified Micro double-ended cordset designed for marine networking applications. This male-to-female cable provides a reliable connection for extending NMEA 2000 backbone networks or connecting devices in your marine electronics system.

Key Features:

• NMEA 2000 certified for guaranteed compatibility with marine electronics
• 4-meter (13.1 feet) length provides flexible installation options
• Male to female micro connectors for easy network extension
• IP68 and NEMA 1, 3, 4, 6P rated for complete water and dust protection
• Triple-layer foil shielding for superior signal integrity and EMI protection
• 4.0 amp current rating at 250V for reliable power transmission
• Temperature rated from -40°F to 176°F (-40°C to 80°C) for extreme environments
• UL and CSA approved for safety and quality assurance

Construction:

• Thermoplastic PUR molded body and contact carrier in blue-gray
• Brass connectors with gold-plated contacts for corrosion resistance
• Nickel-plated brass coupling nut for durability
• 0.59-inch connector outside diameter
• Gray PVC outer jacket with sunlight resistance
• 4 x 22 AWG conductors plus 22 AWG drain wire
• HDPE data pair insulation and SRPVC power pair insulation

This professional-grade cordset is ideal for building or extending NMEA 2000 networks on boats, yachts, and marine vessels where reliable data and power transmission is critical.
