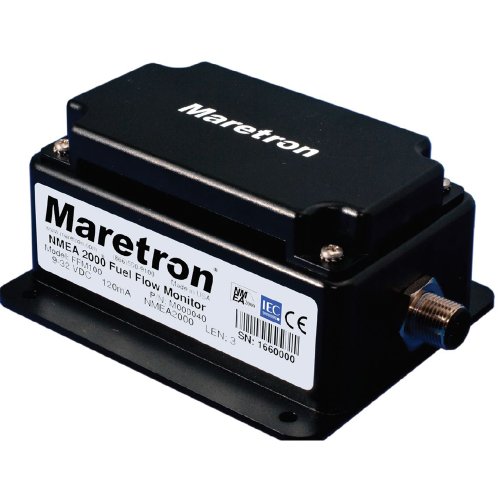

Maretron FFM100-01 Fuel Flow Monitor NMEA 2000 Certified

The Maretron FFM100-01 Fuel Flow Monitor provides precision fuel flow measurement to help optimize fuel consumption and save thousands of dollars in operating costs. This NMEA 2000® certified monitor uses state-of-the-art positive displacement metering technology for unprecedented accuracy comparable to commercial vessel systems, at a fraction of the cost.

Key Features:

• Converts a variety of flow senders (fuel, water, oil, etc.) to NMEA 2000® network data
• Positive displacement metering technology delivers superior accuracy compared to turbine meters
• True temperature compensation with embedded temperature sensors prevents up to 5% measurement error
• Automatically detects and compensates for momentary reverse flow from injection pump pressure fluctuations
• No flow conditioning components required—eliminates need for costly straighteners and pulsation dampers
• Passes particle sizes up to 70 micrometers without clogging
• Compatible with Maretron's N2KView® vessel monitoring and control system
• View fuel data anywhere on vessel using any compatible NMEA 2000® display

The FFM100-01 accurately accounts for the temperature difference between supply and return fuel lines, which is critical for diesel engines where returning fuel runs hotter. Flow senders are ordered separately based on your specific application—single sender for gasoline engines, dual senders for diesel engines, or specialized senders for water and other fluids.

Note: Flow senders sold separately depending on application requirements.
