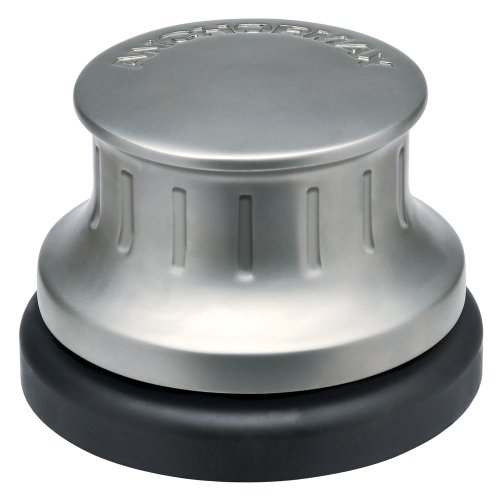

Maxwell ANCHORMAX 12V Electric Anchor Windlass 850lb Capacity

The Maxwell ANCHORMAX electric windlass is a compact, high-performance anchor handling solution designed specifically for boats ranging from 16 to 33 feet. With an impressive power-to-weight ratio and minimal below-deck intrusion, this windlass is ideal for smaller vessels where space is at a premium.

Key Features:

• Maximum line pull of 850 lbs (386 kg) suitable for boats up to 33 feet and 4 tons
• Compact, fully sealed gearbox driven by vertically mounted permanent magnet motor
• Minimal below-deck intrusion makes installation easy on smaller boats
• Simple bolt-on installation with no windlass disassembly required
• Marine-grade alloy gear housings with stainless steel drum for corrosion resistance
• 600-watt 12V motor provides 24 meters per minute retrieval speed at working load
• Includes footswitch, mounting template, fastenings, and complete installation instructions

Technical Specifications:

• Voltage: 12V DC
• Power: 600 watts
• Speed at nominal working load: 76 feet per minute (80 amps with 220 lb load)
• Unit weight: 17.6 lbs (8 kg)
• Maximum boat length: 33 feet (10 meters)
• Maximum boat weight: 4 tons

The ANCHORMAX windlass is supplied as a single direction (clockwise rotation) fully tested unit. This windlass is designed specifically for anchor rode and is not recommended for hauling halyards or chain. Each unit comes complete with deck-mounted footswitch, installation template, stainless steel fastening hardware, and comprehensive fitting instructions.
