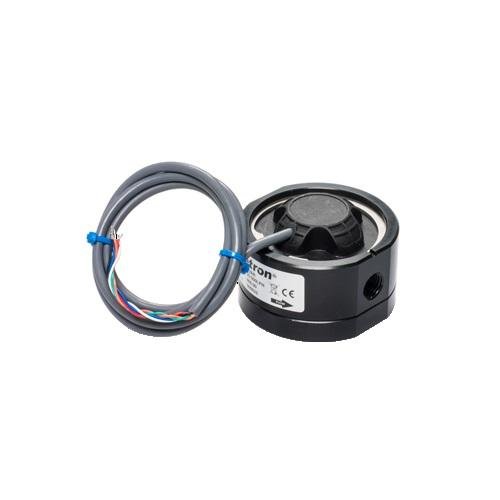

Maretron M2AR Fuel Flow Sensor 25-500 LPH for FFM100 Monitor

The Maretron M2AR is a precision fuel flow sensor designed to monitor fuel consumption on marine vessels with flow rates between 25-500 liters per hour (6.6-132 gallons per hour). This sensor works in conjunction with the Maretron FFM100 Fuel Flow Monitor to provide accurate, real-time fuel consumption data on your NMEA 2000 network.

Key Features:

• Flow range: 25-500 LPH (6.6-132 GPH) ideal for mid-sized diesel and gasoline engines
• Wide operating temperature range: -40°C to 80°C (-40°F to 176°F)
• 1/4" NPT female port connections for easy installation
• High-pressure rated: 68.95 Bar (1000 PSI)
• Handles fuel viscosity up to 1000 cPs
• Includes 1 meter (3.28 ft) cable for connection to FFM100
• Durable construction with storage temperature range: -65°C to 170°C (-85°F to 338°F)

Installation Note: A 200 mesh strainer is recommended if not already installed after your fuel filter to protect the sensor from debris and ensure accurate readings.

This sensor integrates seamlessly with Maretron's fuel flow monitoring system to help you track fuel consumption, calculate fuel economy, and monitor fuel remaining for better trip planning and engine performance analysis.
