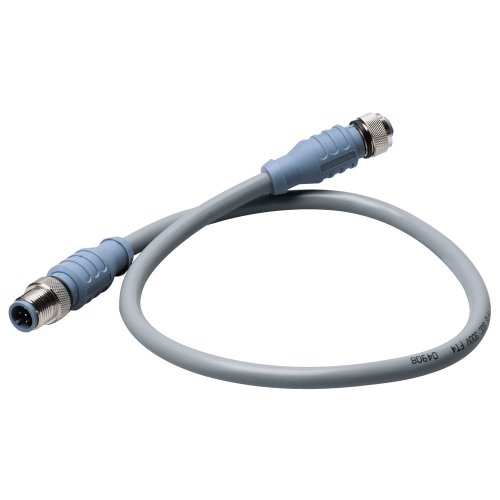

Maretron DM-DG1-DF-03.0 NMEA 2000 Mid Double-Ended Cordset Male to Female 3M Gray

The Maretron DM-DG1-DF-03.0 is a 3-meter (9.8 ft) NMEA 2000 certified mid double-ended cordset designed for marine network installations. This gray cordset features male to female DeviceNet micro connectors, making it ideal for extending connections between NMEA 2000 devices or network components on boats and vessels.

Key Features:

• NMEA 2000 and IEC 61162-3 approved for reliable marine networking
• DeviceNet micro connectors with brass contacts and gold plating for excellent conductivity
• IP68 and NEMA 1/3/4/6P rated protection against water and dust ingress
• Three-level shielding with aluminum/polyester foil for superior signal integrity
• Wide temperature range from -40°F to 176°F (-40°C to 80°C)
• 4.0 amp current rating at 250V for robust power delivery
• Sunlight-resistant PVC outer jacket for durability in marine environments
• UL and CSA approved cable construction

Technical Specifications:

• Cable length: 3 meters (9.8 feet)
• Connector diameter: 0.59 inches
• Conductors: 2x16 AWG power pair, 2x20 AWG data pair, 20 AWG drain wire
• Housing material: Thermoplastic polyurethane in blue-gray color
• Coupling nut: Nickel-plated brass

This cordset provides a reliable, weatherproof connection for expanding or customizing your vessel's NMEA 2000 network backbone or device connections.
