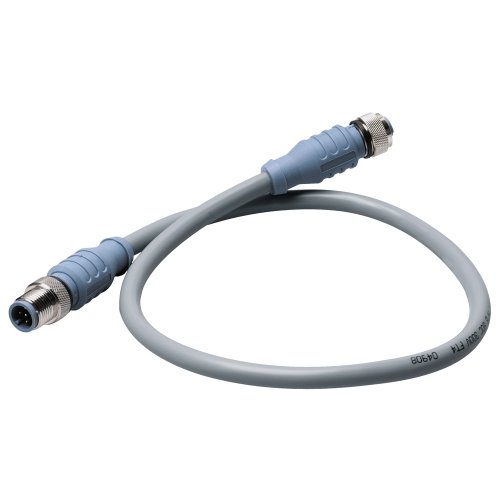

Maretron DM-DG1-DF-00.5 NMEA 2000 Mid Double-Ended Cordset Male to Female 0.5M Gray

The Maretron DM-DG1-DF-00.5 is a NMEA 2000 certified mid double-ended cordset designed for marine networking applications. This 0.5-meter (1.6-foot) gray cable features male to female DeviceNet micro connectors, providing a reliable connection between NMEA 2000 compatible devices on your vessel.

Key Features:

• NMEA 2000 and IEC 61162-3 certified for guaranteed compatibility
• IP68 and NEMA 1, 3, 4, 6P rated for complete waterproof protection
• Triple-level shielding with aluminum/polyester foil for superior signal integrity
• Rated for 4.0 amps at 250V for reliable power and data transmission
• Operating temperature range from -40°F to 176°F (-40°C to 80°C)
• Thermoplastic PUR molded connectors in blue-gray with brass/gold contacts
• Brass coupling nuts with nickel plating for corrosion resistance
• 0.59-inch connector outside diameter for compact installations

Cable Construction:

• Gray PVC outer jacket with sunlight resistance
• 2x16 AWG (1.29mm) power conductors with PVC insulation
• 2x20 AWG (0.81mm) data conductors with PE insulation
• 20 AWG (0.81mm) drain wire for enhanced grounding
• UL PLTC 75°C sunlight resistant and AWM 80°C 300V rated
• CSA CMX-OUTDOOR-CMG certified with FT4 flame rating

This cordset is ideal for extending connections between NMEA 2000 displays, sensors, and other network components in harsh marine environments. The robust construction and comprehensive environmental protection ensure long-term reliability in saltwater conditions.
