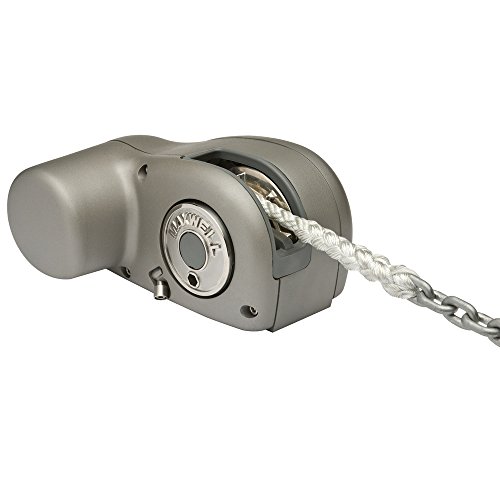

Maxwell HRCFF812V HRC8 Horizontal Rope Chain Windlass 5/16" Chain 12V

The Maxwell HRC8 Horizontal Rope Chain Windlass represents the latest innovation in automatic rope/chain windlass technology. This compact horizontal windlass combines Maxwell's proven engineering with advanced rode management technology for reliable anchor handling on vessels up to approximately 40 feet.

Key Features:

• Simple bolt-down installation for effortless on-deck setup with no below-deck modifications required
• Patented pressure arm system ensures guaranteed trouble-free transition from rope to chain within a safe, enclosed design
• Integrated composite nylon through-deck hawse pipe provides smooth, snag-free operation
• High-efficiency spur gearbox with robust non-backwind mechanism for secure holding
• Automatic free-fall technology allows controlled anchor deployment - simply activate the free-fall lever and operate your down control for instant deployment
• Emergency free-fall function operates even during onboard power failure
• Heavy-duty dual-direction motor with integrated wiring for quick electrical installation
• Motor easily removes for simple routine brush maintenance without removing entire unit
• Aesthetically pleasing die-cast, marine-grade alloy case with hard anodized finish for maximum corrosion resistance
• Watertight design encapsulates motor and drive, saving below-deck space

Technical Specifications:

• Maximum Pull: 900 lbs
• Chain Size: 5/16" short link
• Rope Size: 9/16" nylon three-strand
• Line Speed: 108 feet per minute
• Power Supply: 12V DC
• Motor Power: 600W
• Weight: 25 lbs

Complete Kit Includes: Windlass unit, on/off breaker panel, reversing solenoid, up/down panel switch, and clutch release handle for a complete installation.

The HRC8 is ideal for boats with limited below-deck space, offering professional-grade anchor handling with revolutionary jam-free retrieval of both rope and chain controlled from remote panel-mounted or optional footswitch controls.
