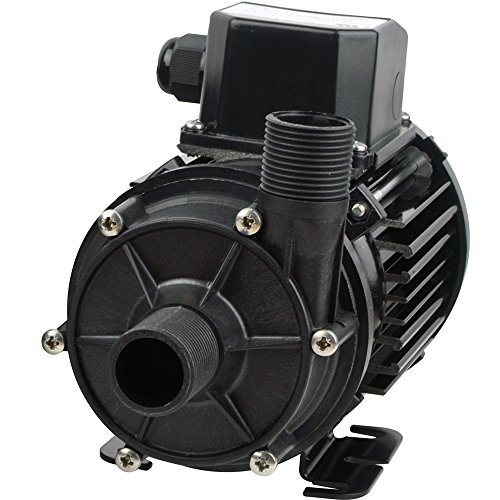

Jabsco 436981 Magnetic Drive Centrifugal Pump 21 GPM 110V AC

The Jabsco 436981 is a magnetically coupled centrifugal pump engineered for applications requiring safe, leak-free continuous duty operation. Designed for marine air conditioning circulation, ice makers, hot water circulation, livewell and bait tank installations, this reliable pump delivers 21.13 GPM open flow with an 18-foot head.

Key Features:

• Pump head manufactured in chemical resistant thermo-plastics - entirely non-metallic
• Magnetic couplings provide an energy efficient thermal shield, minimizing heat transfer to the pumped fluid
• UL listed, ignition and thermally protected fan cooled motor
• IPX5 standard motor housing with deep groove ball bearings
• 3/4 inch NPT ports for easy connection
• 60W motor output drawing 1.4 amps with 1.5A fuse protection

Technical Specifications:

• Flow Rate: 21 GPM (80 L/min)
• Voltage: 110V AC 60Hz
• Maximum Head: 18 feet
• Port Size: 3/4 inch NPT
• Power Consumption: 60W
• Current Draw: 1.4 amps
• Fuse Rating: 1.5A

The magnetic drive design eliminates shaft seals, providing a completely sealed pump head that prevents leaks and contamination. Ideal for continuous duty marine and industrial applications where reliability and chemical resistance are essential.
