The wingnut design and snap-in base make removal, dissasembly and cleaning a breeze.

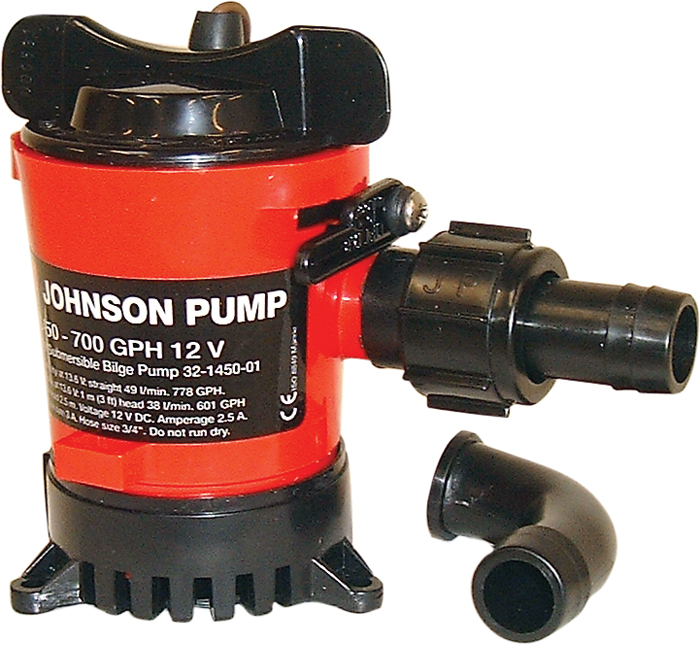

A removable motor cartridge makes maintenance or replacement easy, without the need to re-plumb the pump. Pumps ship with a 90°, smooth elbow and one straight discharge port. Made of durable, yet resilient polypropylene, these ports install via a convenient one inch garden hose style fitting which eliminates stress cracks caused by overtightening. An added benefit is that the 90° elbow may be rotated to make hose connections easy in cramped mounting locations. Outlet port check valve included for optional use.
Key Features
- No tools need for maintenance
- Motor cartridge can easily be removed for cleaning or replacement
- Long-life, water-cooled motor
- 90° port can be rotated for ease of installation
Specifications
- Type: Submersible cartridge bilge pump
- Dimensions: 4 7/16"H x 2 3/4"dia.
- Port Size: 3/4"
- Built-In Switch: No
- Material: Thermoplastic body, stainless shaft
- Warranty: Three years
| Capacity | Amperage |
|---|
| 500gph | 2.5A @ 12V DC |
| 750gph | 3.0A @ 12V DC |
| 1000gph | 3.2A @ 12V DC |
