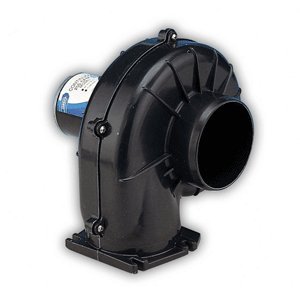

Jabsco 35760-0092 4" Heavy Duty Flangemount Blower 250 CFM 12V DC

The Jabsco 35760-0092 is a heavy-duty continuous duty flangemount blower designed for demanding marine ventilation applications. Delivering 250 CFM (7.0 m³/min) of airflow, this 4-inch blower is engineered for engine room duty on commercial vessels, charter yachts, and other high-use installations where reliability and longevity are critical.

Key Features:

• 5,000+ hour motor life for extended continuous operation
• 250 CFM airflow capacity with efficient radial blower design
• 12V DC operation with low 11-amp current draw to conserve battery power
• Ignition protected - complies with USCG regulation 183.410, ISO 8846 MARINE, and ISO 9097 MARINE standards
• Flangemount design with outlet flange that mounts directly to bulkhead for clean installation
• 360° adjustable outlet orientation for flexible installation
• Slip-on 4-inch inlet ducting connection for easy installation
• Quiet running motor with stable Delrin rotors for minimal noise output
• Tough reinforced plastic housing with corrosion-resistant materials
• CE marked and complies with BSEN 50081-2 for electromagnetic interference suppression

Specifications:

• Airflow: 250 CFM (7.0 m³/min)
• Voltage: 12V DC
• Current Draw: 11 amps
• Motor Speed: 3,200 RPM
• Inlet Size: 4 inches
• Outlet Size: 3-5/8 inches
• Maximum Inlet Temperature: 130°F
• Recommended Fuse: 15 amp
• Dimensions: 9.45" L x 9.06" H x 8.66" W
• Weight: 4 lbs

Ideal for continuous ventilation of engine compartments, genset enclosures, fuel compartments, galley areas, and heads. The flangemount configuration provides superior performance for longer ducting runs or installations with multiple bends compared to inline blowers. This blower is specifically designed for removing fumes and vapors from boat engine rooms and fuel compartments, making it essential for safety and regulatory compliance in marine applications.
