These pumps include an electro-magnetic float switch that won't jam on debris.

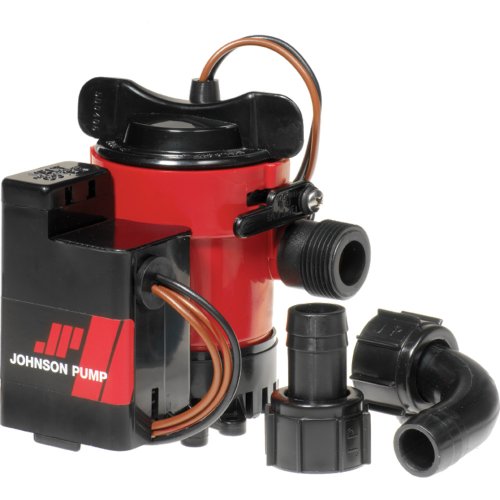

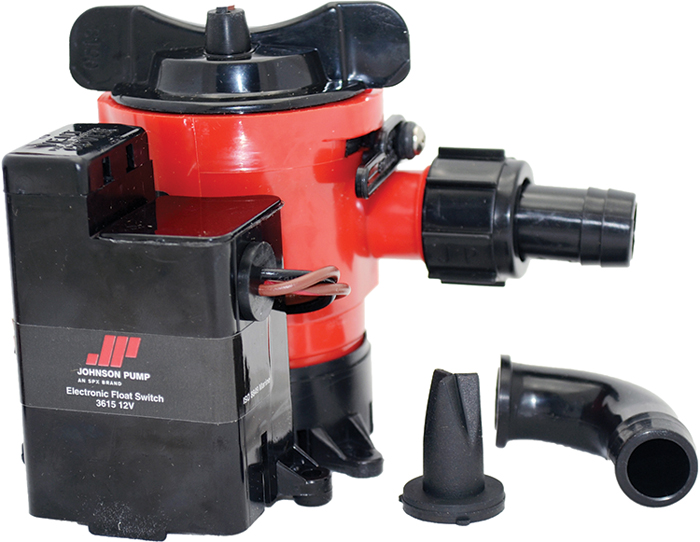

For automatic or manual operation, these dependable pumps include a sealed electro-magnetic float switch that won't jam on debris. Each comes with a removable check valve plus straight and 90° Dura-ports for easy hand installation and the elimination of stress cracks caused by over-tightened clamps. Should cleaning become necessary, the convenient wing nut design of the motor/impeller cartridge permits easy removal by hand for cleaning no tools required!
Key Features
- Automatic or manual operation
- Electro-magnetic float switch won’t jam on debris
- Straight and 90° Dura-ports allow easy hand installation
- Removable check valve prevents water back flow
- Wing nut design allows removal of motor assembly for easy cleaning
Specifications
- Type: Centrifugal cartridge bilge pump with electro-magnetic float switch
- Port: 3/4"
- Dimensions: 4 1/2"H x 4"dia.
- Built-In Switch: Yes; Sealed electo-magnetic float
- Material: Thermo-plastic body, 316 stainless steel shaft
- Warranty: Three years
| Capacity | Amperage |
|---|
| 500gph | 2.5A @ 12V DC |
| 750gph | 3.0A @ 12V DC |
| 1000gph | 3.2A @ 12V DC |
More Information
For detailed installation and wiring instructions see the for these pumps.
