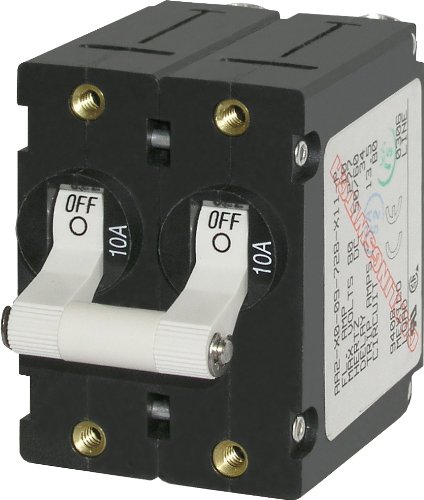

Blue Sea Systems 7233 A-Series Double Pole Toggle Circuit Breaker 10A White

The Blue Sea Systems 7233 is a double-pole toggle circuit breaker that combines switching and circuit protection into a single compact device. Rated at 10 amps, this white-colored breaker is designed for marine electrical systems and commonly used as AC main circuit protection on boats and yachts.

Key Specifications:

• Amperage Rating: 10A
• Poles: 2 (Double Pole)
• Color: White
• Trip-free design prevents the breaker from being held in the ON position during fault conditions

Features & Certifications:

• Meets American Boat and Yacht Council (ABYC) standards for marine applications
• UL 1077 recognized for supplementary overcurrent protection
• TUV certified and CE marked for European markets
• CSA certified for Canadian installations
• Industry standard circuit breaker used throughout Blue Sea Systems electrical panels

The A-Series toggle circuit breakers provide reliable overcurrent protection while offering convenient manual switching control. The trip-free mechanism ensures safe operation by automatically tripping during overload or short circuit conditions, regardless of toggle position.
