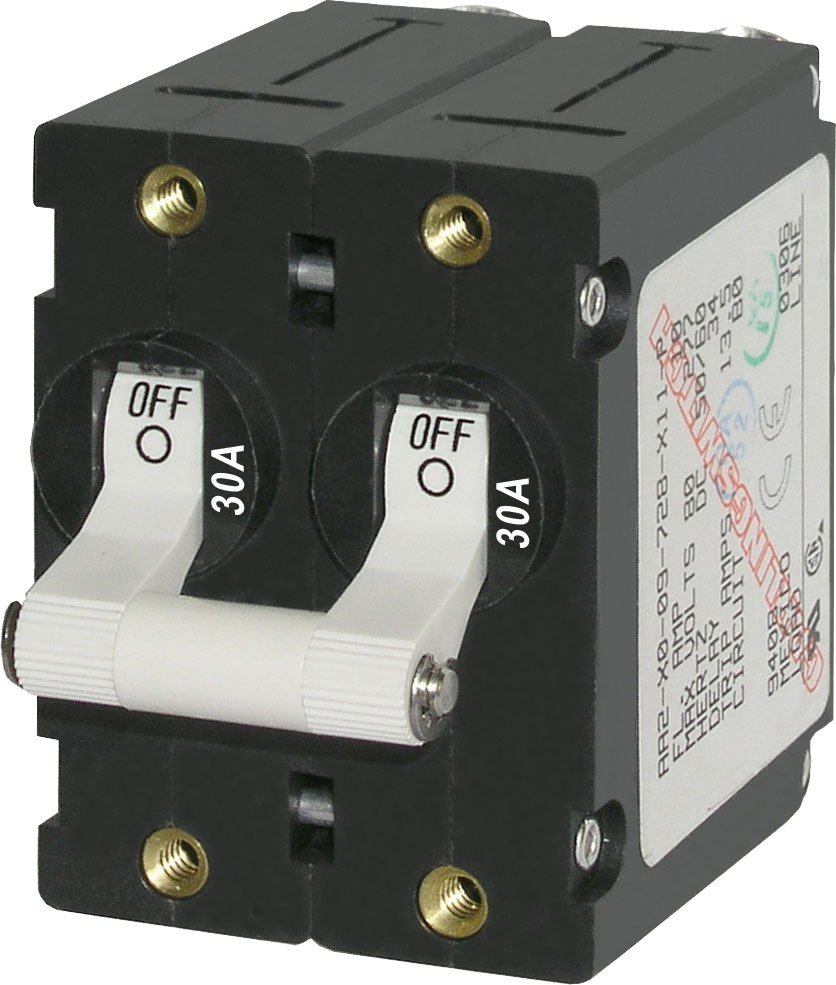

Blue Sea Systems 7238BSS A-Series 30A Double Pole Toggle Circuit Breaker White

The Blue Sea Systems 7238BSS is a compact 30-amp double pole toggle circuit breaker designed for marine and mobile electrical systems. This A-Series breaker features magnetic hydraulic circuit protection technology that provides reliable overcurrent protection for DC circuits up to 65 volts or AC circuits up to 240 volts.

Key Features:

• 30-amp current rating with double pole configuration for simultaneous protection of two circuits
• Magnetic hydraulic technology provides superior trip characteristics and long service life
• Toggle actuator design for easy manual on/off operation and trip indication
• White finish integrates cleanly with electrical panels and control systems
• Number 10-32 screw terminals for secure wire connections
• Rated for 65 VDC or 120/240 VAC applications
• Single circuit breaker unit for individual circuit protection

Blue Sea Systems A-Series circuit breakers are engineered for demanding marine environments where reliability and safety are critical. The magnetic hydraulic trip mechanism responds quickly to overcurrent conditions while resisting nuisance tripping from temporary surge loads. The double pole design disconnects both the hot and neutral conductors, providing complete circuit isolation when switched off or tripped.
