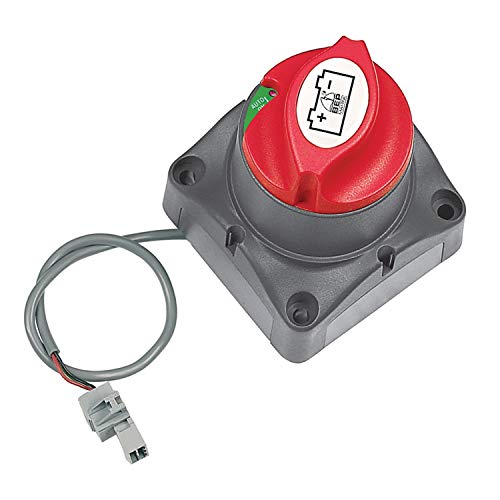

BEP Marine 701-MD Remote Operated Battery Switch 275A Continuous

The BEP Marine 701-MD is a remote-operated battery switch designed to handle the increased electrical loads found on modern marine vessels. With a continuous rating of 275A, this switch allows for installation directly alongside the battery, enabling remote management and control from a convenient location.

Key Features:

• Remote operation capability allows switch mounting near battery, significantly reducing battery cable lengths and sizes
• Substantial cost and weight savings through reduced copper cable requirements
• Simplified installation with shorter cable runs and reduced labor time
• Manual override option for compliance with CE and ABYC safety requirements
• LED status identification on remote control switch for visual confirmation
• Low power draw of only 12mA when switch is in off position
• Compatible with BEP's interchangeable labeling system (items 713 or 715)
• Ideal for remote isolation of bow thrusters, stern thrusters, and high-current applications

Technical Specifications:

• Continuous Rating: 275A DC
• Intermittent Rating: 455A DC
• Cranking Rating: 1250A DC
• Operating Voltage: 9.5-32V DC
• Function: On/Off
• Stud Size: Two 3/8" (10mm) terminals
• Dimensions: 2.7" L x 2.7" W x 4" H

This switch provides the same mounting options and specifications as standard BEP battery switches while offering the convenience of remote operation, making it an excellent choice for modern marine electrical systems with high power demands.
