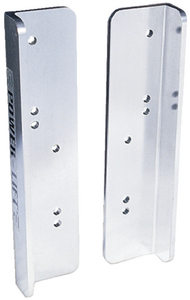

Cook Mfg. 50012 5 Inch Vertical Extension for Static Jack Plate

The Cook Mfg. 50012 Vertical Extension is a heavy-duty outboard motor mounting solution that allows the motor to be mounted 5 inches higher than the standard mounting height on the transom. This extension is constructed of extruded 6061-T6 aluminum alloy, providing exceptional strength and corrosion resistance for long-lasting marine performance.

Key Applications:

• Essential for conversion from prop to jet drive

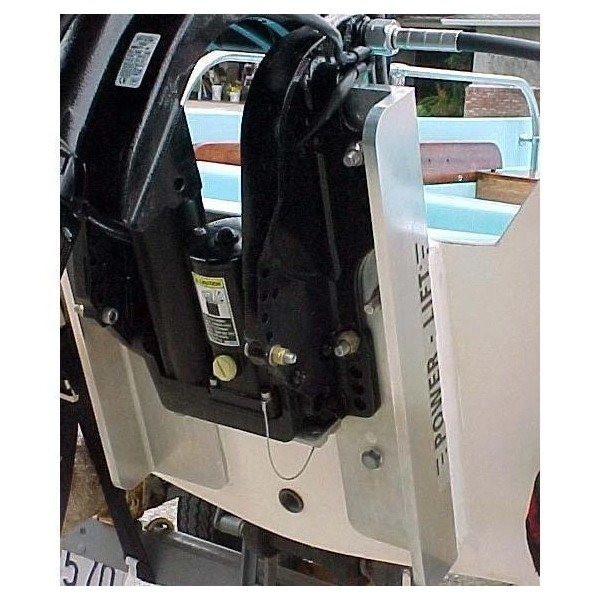

• Can be mounted on a hydraulic jack plate to raise the motor higher on shallow running boats equipped with tunnel extensions
• Ideal for boats with short transoms requiring additional vertical clearance

Specifications:

• Rated for V-6 and smaller boat engine applications
• Dimensions: 5 inches wide x 20.5 inches high when mounted
• 1/2 inch setback
• Static operation
• Made in the USA

This vertical extension is designed for durability in demanding marine environments and provides the height adjustment needed for optimal outboard motor performance in shallow water applications.
