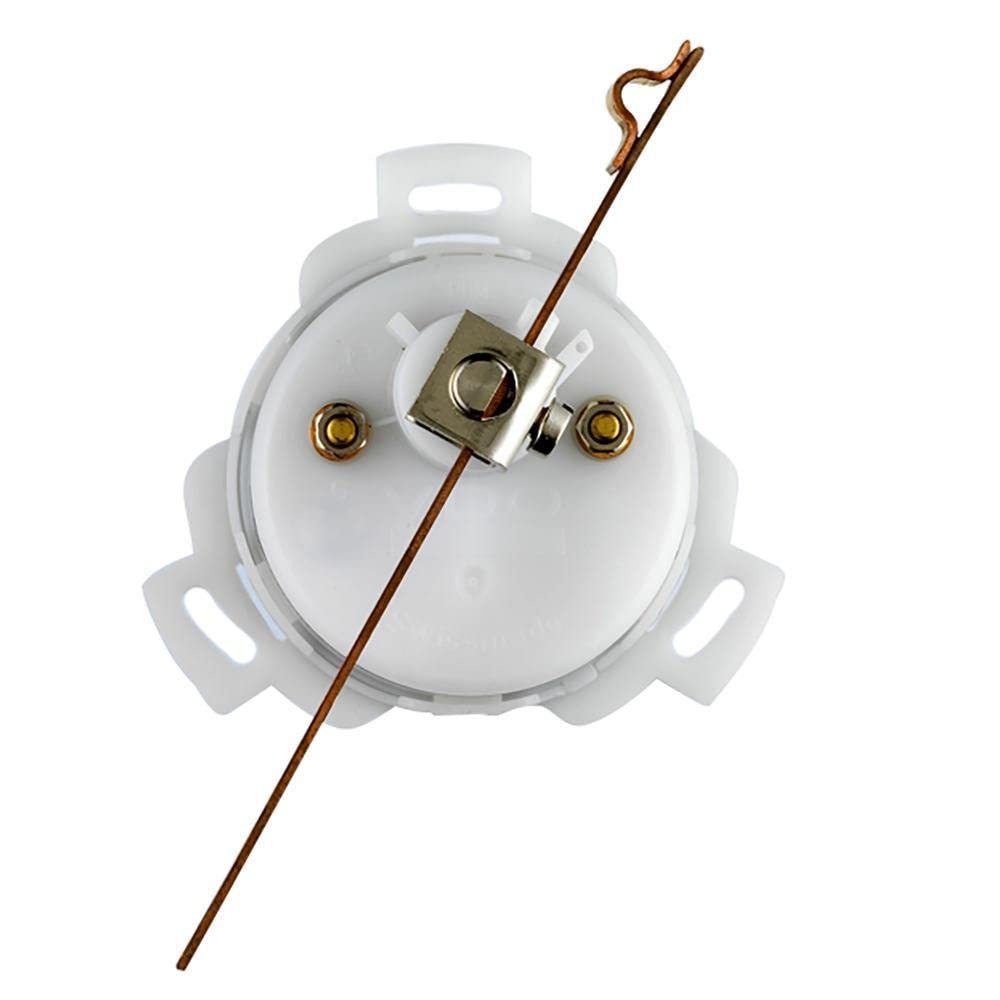

VDO Gauges A2C1102960001 VERATRON DUAL STATION RUDDER ANGLE SENSOR 12/24V

The VDO Veratron Rudder Angle Sensor is designed for dual station marine installations, providing accurate rudder position feedback to multiple gauge displays. This analog sensor enables simultaneous rudder angle monitoring from two separate helm stations, essential for larger vessels with multiple control locations.

Key Features:

• Dual station capability - connects to two gauges simultaneously
• Wide measurement range: 45° port to 45° starboard
• Universal 12V/24V DC compatibility (6-24V operating range)
• Analog signal output: 1.5-90 ohm resistance
• Simple 2-wire installation system
• Insulated return sensor signal for reliable operation

Technical Specifications:

• Measurement Range: 45° - 0° - 45°
• Signal Output: Analog 1.5-90 Ohm
• Resistance Value: 1.5-90 Ohm (2 gauges)
• Operating Voltage: 6-24V DC
• Communication: Analog
• Wiring: 2-wire system

This rudder angle sensor is ideal for sailboats, powerboats, and commercial vessels requiring precise steering position monitoring from multiple helm locations. The analog output ensures compatibility with VDO Veratron gauges and other analog rudder angle indicators.
