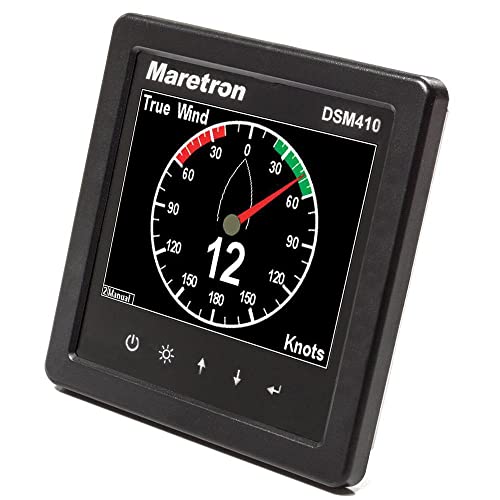

The Maretron DSM410-01 is a 4.1" high-resolution sunlight viewable color display designed to interpret and display NMEA 2000® instrument, navigation, and vessel monitoring data. This dedicated marine display features a user-friendly interface with custom screen configurations and an easy-to-use five-key illuminated keypad. The DSM410 combines comprehensive monitoring capabilities with alert/alarm functionality and electrical switching control.
Flexible Display Options:
Unlike traditional single-display units, the DSM410 offers multiple viewing formats including numeric, gauge, bar, and graph displays. Users can configure single or multiple data displays with cycling options for favorite parameters, conserving mounting space while reducing overall system cost.
Comprehensive Data Monitoring:
The DSM410 connects directly to any NMEA 2000® network and displays virtually all information captured throughout the vessel (except AIS data). Monitored parameters include AC power, anchor status, battery monitoring, depth, electrical distribution, engine data, environmental conditions, fuel management, GPS, heading, navigation, pressure/vacuum, rudder position, speed, tanks, temperature, transmission, watermakers, weather, wind, and more.
Advanced Alert System:
Configure audio and visual alerts on virtually any monitored data with flexible alert types including high/low thresholds, data unavailable warnings, on/off status, circuit breaker trips, course alerts, GPS quality, radius alerts (inside/outside), direction alerts, and timer alerts. Alert information is shared across all DSM410, DSM150, DSM250, and N2KView® installations on the network, allowing acknowledgment from any device.
Key Features:
- 4.1" high-resolution sunlight viewable color display
- Five-key illuminated keypad for easy operation
- Customizable screen configurations with multiple display formats
- Direct NMEA 2000® network connectivity
- Comprehensive alert and alarm package with network sharing
- Electrical switching capability for system control
- Compact waterproof housing for marine environments
- Engineered to IEC 60945 Maritime Navigation and Radiocommunication Equipment standards
- Black bezel finish
The DSM410 provides reliable, long-term performance in demanding marine environments, offering professional-grade monitoring and control for vessels of all sizes.
