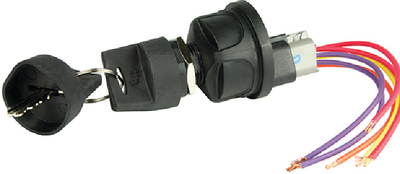

BEP Marine 1001603 4-Position Ignition Switch with Deutsch Connector

The BEP Marine 1001603 is a heavy-duty 4-position sealed ignition switch designed for harsh marine environments. Featuring an integral Deutsch connector, this keyed switch delivers reliable starting and accessory control with industry-leading waterproof protection.

Waterproof Construction:

• IP67 waterproof rating protects against water immersion and spray
• Fully sealed contact areas with O-ring seals prevent moisture intrusion
• Ultrasonic welding ensures permanent, leak-proof assembly
• High-impact corrosion-resistant plastic housing withstands marine conditions

Electrical Specifications:

• Nominal voltage: 12V/24V DC dual-voltage compatible
• Current rating: 10A at 12V DC, 5A at 24V DC
• SAE J259 certified for ignition switch applications
• Integral Deutsch connector for secure, waterproof wiring connections

Installation Details:

• Fits panels up to 3/8 inch thick
• 4-position operation: Off, Ignition, Accessory, and Start
• Includes two keys for secure operation
• Direct replacement for Cole Hersee part number 95060-50

Ideal for boats, marine electronics, and other watercraft electrical systems requiring reliable ignition control. The combination of waterproof sealing, robust construction, and certified performance makes this switch suitable for both fresh and saltwater applications.
