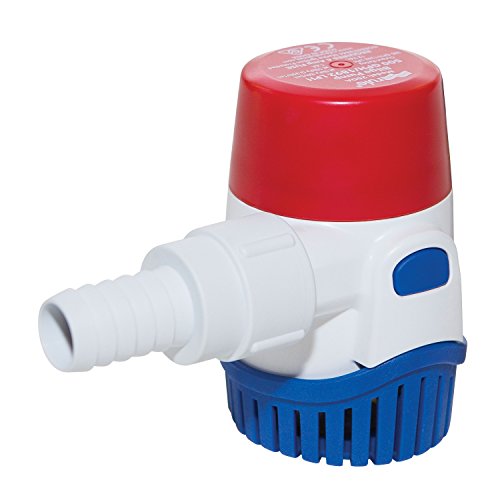

Xylem 25DA 500 GPH Submersible Bilge Pump 12V

The Xylem 25DA is a 500 GPH (gallons per hour) submersible bilge pump designed for marine applications. This non-automatic pump delivers superior pumping performance with improved efficiency, providing full rated flow at 12 volts DC rather than the previously required 13.6 volts, making it ideal for typical onboard voltage supplies.

Key Features:

• 500 GPH flow capacity with optimized impeller design for maximum flow at the same amperage
• 12V DC operation with low current draw of just 1.6 amps at 12V (1.8 amps at 13.6V)
• Built-in thermal cut-off (TCO) protection to safeguard the pump and vessel when temperatures get too hot
• Integrated check valve with backflow prevention keeps bilges dryer by preventing water in the discharge from running back
• Hidden air vents built into the pump body under each strainer tab prevent airlocking in challenging plumbing installations
• 3/4 inch hose connection for easy integration
• Compact dimensions: 3.9 inches high x 2.9 inches wide
• Requires 4 amp fuse (fuse not included)
• Uses replacement strainer Model 1231R
• Compatible with Rule panel switches (models 41, 43, 45, 49) and float switches (35A, 37A, 40A)
• True electromagnetic suppression (EMC) for reliable operation

This non-automatic bilge pump is designed to be used with a panel switch or Rule float switch for activation. Ideal for boats, marine vessels, and recreational watercraft requiring reliable bilge water removal.
