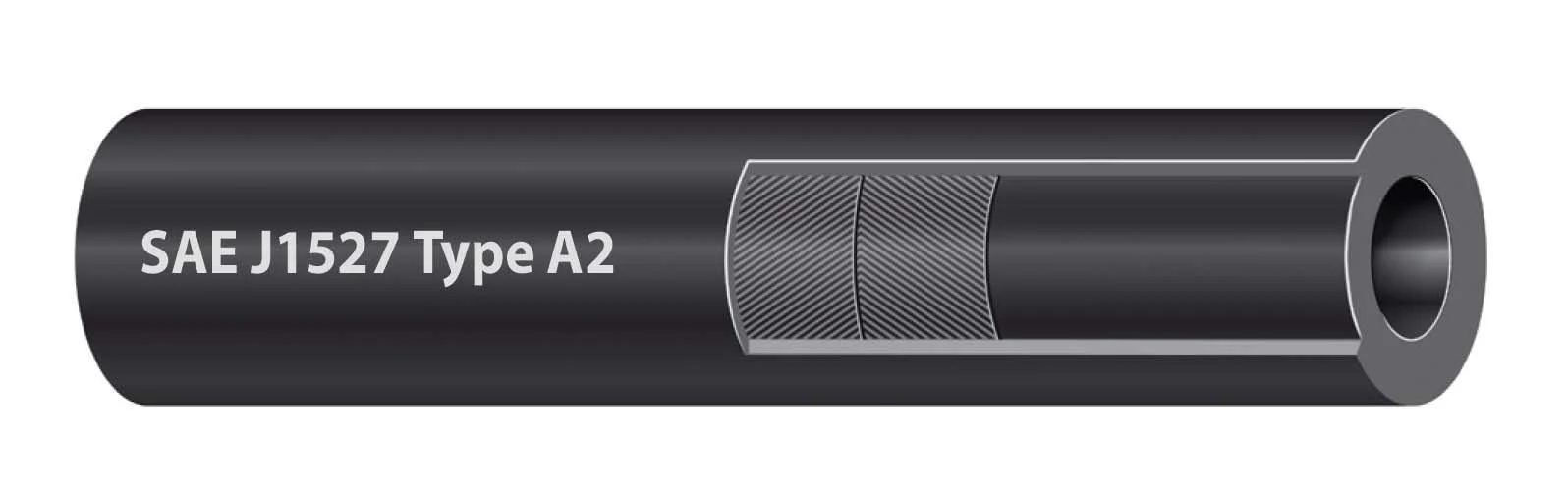

Sierra 116-369-0585 Fire-Acol Fuel Vent Hose 5/8" x 25' Type A2

The Sierra 116-369-0585 is a 25-foot length of Shields 369 Series Fire-Acol fuel vent hose designed specifically for marine fuel system vent line applications. This professional-grade hose features a 5/8-inch inside diameter and is engineered to handle gasoline with up to 85% ethanol blends as well as diesel fuel, making it ideal for modern marine fuel systems.

Key Features:

• Fire-resistant construction with weather and UV-resistant NBR/PVC cover
• Resistant to gasoline/alcohol blends up to 85% ethanol and diesel fuel
• Inside diameter: 5/8" (15.9mm), Outside diameter: 31/32" (24.6mm)
• Operating temperature range: -20°F to 160°F
• Maximum working pressure: 50 PSI
• Burst strength: 200 PSI

Marine Safety Certifications:

• Meets USCG Type A2 requirements for pleasure boats
• Complies with SAE J1527 Type A2 standards
• Meets ISO 7840 Type A2 specifications
• NMMA/CE Type accepted standards

This fuel vent hose is constructed with a thick nitrile inner tube and durable cover that provides excellent resistance to permeation, fire, heat, ozone, and aging from alcohol-blended fuels. The reinforced design offers excellent flexibility and bend radius for easier installation in tight spaces.
