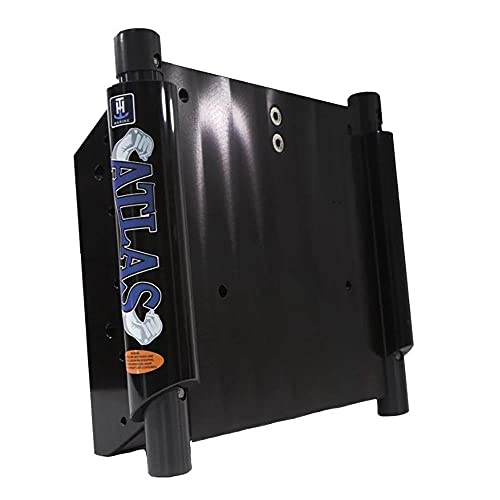

The T-H Marine Atlas AHJ4VBDP represents a revolutionary approach to hydraulic jack plate design, featuring an innovative rod and slot lift system engineered to handle the stresses from the heaviest and most powerful V6 outboards on the market. This high-tech, one-piece design is built for outboard motors up to 300 horsepower and 625 pounds dry weight, making it ideal for both professional anglers and recreational boaters.
Integrated Hydraulic System:
All hydraulics are built directly into the jack plate, eliminating the need for separate pumps, reservoirs, or hydraulic hoses running through the transom. This self-contained design simplifies installation, reduces potential failure points, and delivers lightning-fast operation with a full lift cycle in just 8 seconds from bottom to top.
Key Features:
- 4-inch setback with 5 to 7 inches of vertical height adjustment
- High-tech engineered polymer rods that are 6 times more abrasion resistant than steel
- Self-lubricating rod material eliminates the need for regular grease maintenance
- Heavy-duty safety cable prevents engine from entering cockpit in case of failure
- Pre-drilled mounting points for shallow water anchor installation
- Simple field actuator replacement design
- Transom dimensions: 16-3/8" wide x 12-1/2" tall
- Includes relay harness and rocker switch
- Made in USA hydraulic actuator
Performance Benefits:
The Atlas jack plate optimizes outboard motor positioning to reduce drag, increase fuel efficiency, and help boats get on plane faster. The precision height adjustment allows you to adapt to changing water conditions and maximize performance in shallow or deep water situations.
Industry Leading Design:
T-H Marine was the first to integrate an actuator inside the jack plate itself, a design innovation that has since been widely copied. The Atlas is factory installed by more boat manufacturers than any other jack plate and is the #1 choice of professional fishermen worldwide.
