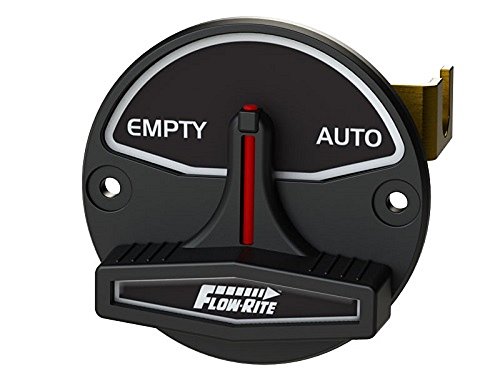

Flow-Rite MPC-1-02-100 Livewell Valve Actuator 2-Position Auto/Empty

The Flow-Rite MPC-1-02-100 is a 2-position rotary knob actuator designed for use with Flow-Rite V2 series automatic livewell control valves. This marine-grade actuator provides convenient remote control of your boat's livewell system with Auto and Empty functions.

Key Features:

• Quick disconnect feature allows easy cable changes without removing the entire assembly
• Ergonomically designed T-handle with rubberized grip for comfortable operation
• Light gathering indicator for improved visibility in low-light conditions
• Brass locking nut with knurled cover for secure, finger-tight installation
• Corrosion-resistant construction for durability in harsh marine environments
• Black housing with white lettering for clear position identification

Installation Requirements:

• Requires 1-3/4 inch mounting hole
• Requires two MD-093 screws for installation (not included)
• Compatible with Flow-Rite V2 series automatic valves
• Control cable must be ordered separately

The Auto position allows fresh water to mix with recirculated livewell water when the boat is off plane, while the Empty position drains the livewell by allowing water to exit but not enter. Control your livewell system with confidence using Flow-Rite's proven actuator technology.
