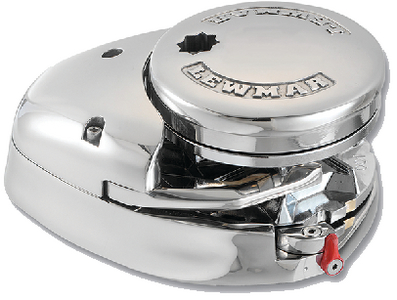

Lewmar 6671011108138 V1 Series Vertical Windlass 12V with Gypsy, 5/16" Chain, 1/2"-5/8" Line

The Lewmar V1 Series is a compact vertical stainless steel windlass designed for both power and sailboats ranging from 28 to 40 feet in length. This beautifully styled deck unit conceals a robust, reliable drive train, worm gearbox and splined shaft for maximum strength and control.

Key Performance Specifications:

• Maximum pulling power of 1,000 lbs
• Anchor retrieval speed up to 65 feet per minute
• 700-watt 12V motor with 112 amp normal current draw
• Designed for 5/16" ISO G4 High Test windlass chain and 1/2" or 5/8" 3-strand or 5/8" 8-plait line

FastFit™ Installation System:

• FastFit™ clamping system allows the windlass shaft to self-align to the motor orientation during installation, eliminating the need for trial and error shim fitting

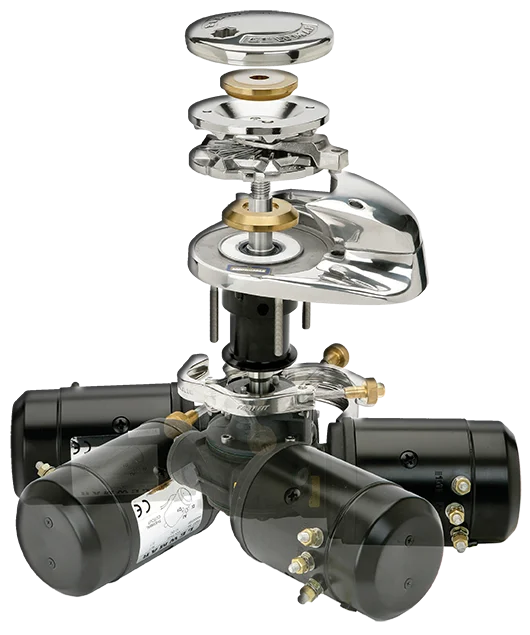

• Motor/gearbox can be rotated and fixed in increments of 45°
• FastFit™ motor gearbox attachment enables the windlass to be fitted by one person alone

Features:

• Polished stainless steel deck unit with chrome-plated bronze gypsy
• Rope-chain gypsy for automatic rope/chain transition
• Manual chain release with free-fall capability
• Cone clutch for smooth, precise control
• Fall-safe anchor lock for secure holding
• Reliable worm drive gearbox for durability and power
• Power up/power down with manual override

Complete Kit Includes:

• Deck unit with gypsy
• 12V motor gearbox assembly
• Two-direction contactor/control box
• Circuit breaker (90 amp)
• Guarded rocker switch
• Manual recovery handle

The V1 windlass features a low-profile design that keeps the foredeck clean and uncluttered. Its robust construction and reliable worm gearbox technology ensure years of dependable service in the demanding marine environment. Backed by Lewmar's 3-year warranty for quality and peace of mind.
