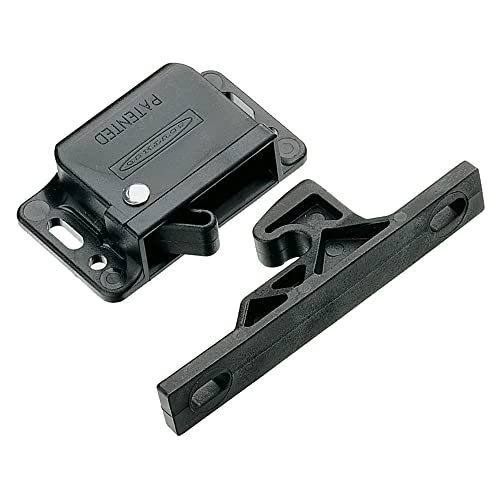

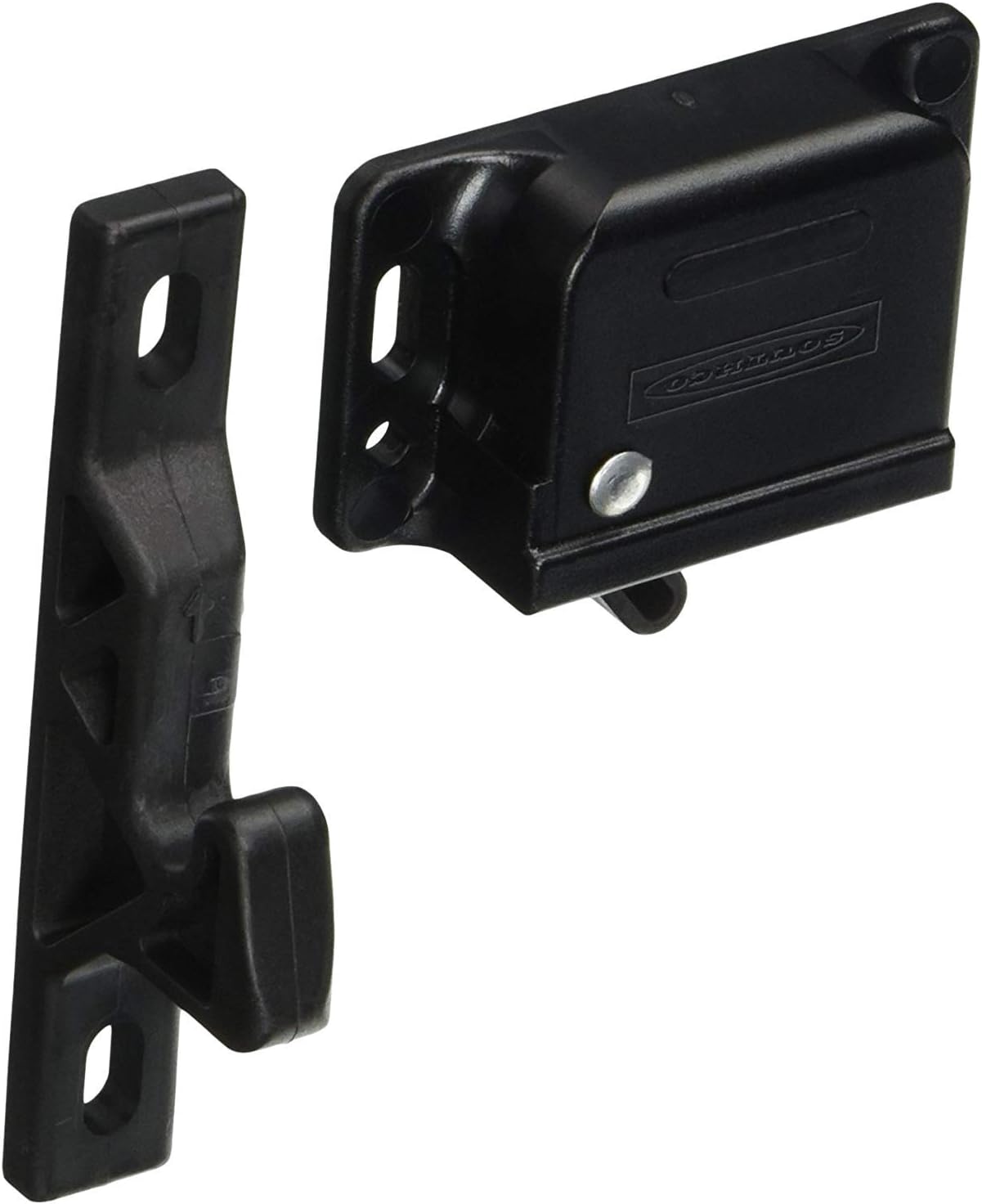

Southco C3-805 Grabber Catch Latch Side Mount Black 22N

The Southco C3-805 Grabber Catch Latch is a spring-loaded over-center latching mechanism designed for side-mount applications. This complete assembly includes both the catch and keeper components, providing a reliable latching solution with a pull-up force rating of 22N (5lbf). The black PC/ABS construction offers durability and a clean appearance for marine, RV, automotive, and industrial applications.

Key Features:

• Spring-loaded over-center latching mechanism for secure closure
• Complete assembly includes both catch and keeper
• Black PC/ABS material construction
• Pull-up force rating: 22N (5lbf)
• Operating temperature range: -30°C to 60°C (-20°F to 140°F)
• UL94-HB flammability rating

Installation Requirements:

• Orient keeper so the arrow points toward the cam for proper engagement
• Minimum clearance: 150mm (5.9 inches) from frame to door hinge centerline
• Adjust after mounting to ensure smooth latching operation

This versatile catch latch is ideal for access panels, doors, hatches, and compartments requiring positive latching with moderate holding force.
