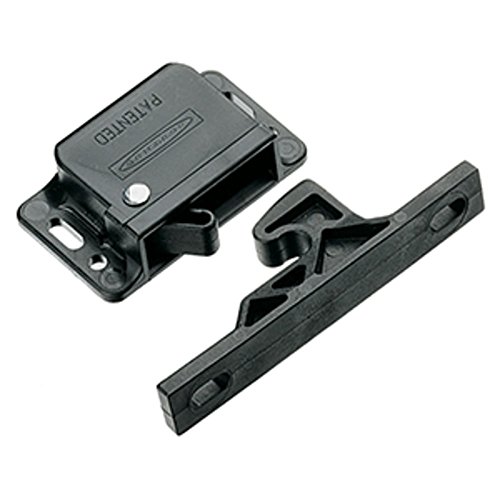

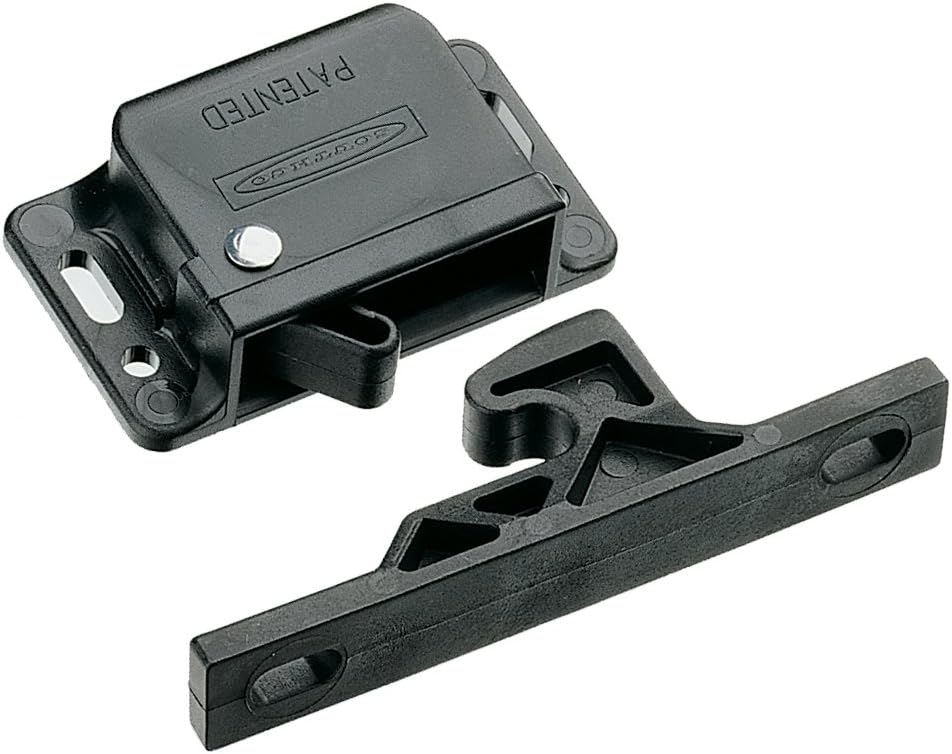

Southco C3-803 Grabber Catch Latch Side Mount Black 13N

The Southco C3-803 Grabber Catch Latch is a reliable side-mount latching solution designed for doors, panels, and access covers. This black spring-loaded latch provides secure over-center latching action with a pull-up force rating of 13N (3 lbf), making it ideal for applications requiring moderate holding strength.

Key Features:

• Spring-loaded over-center latching mechanism for positive engagement
• Complete assembly includes both catch and keeper components
• Constructed from durable PC/ABS composite material with black finish
• Operating temperature range: -30°C to 60°C (-20°F to 140°F)
• UL94-HB flammability rating for safety compliance
• Pull-up force: 13N (3 lbf)

Installation Requirements:

• Orient keeper so arrow points toward the cam for proper engagement
• Mount to door surface and adjust for smooth latching operation
• Minimum distance from mounting frame to door hinge centerline: 150mm (5.9 inches)

This versatile latch is suitable for marine, RV, industrial enclosures, and automotive applications where reliable panel retention is required in moderate temperature environments.
