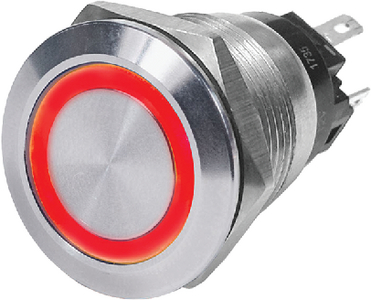

Blue Sea Systems 4163 Push Button Switch with LED Ring, Red, Off-(On), 10A

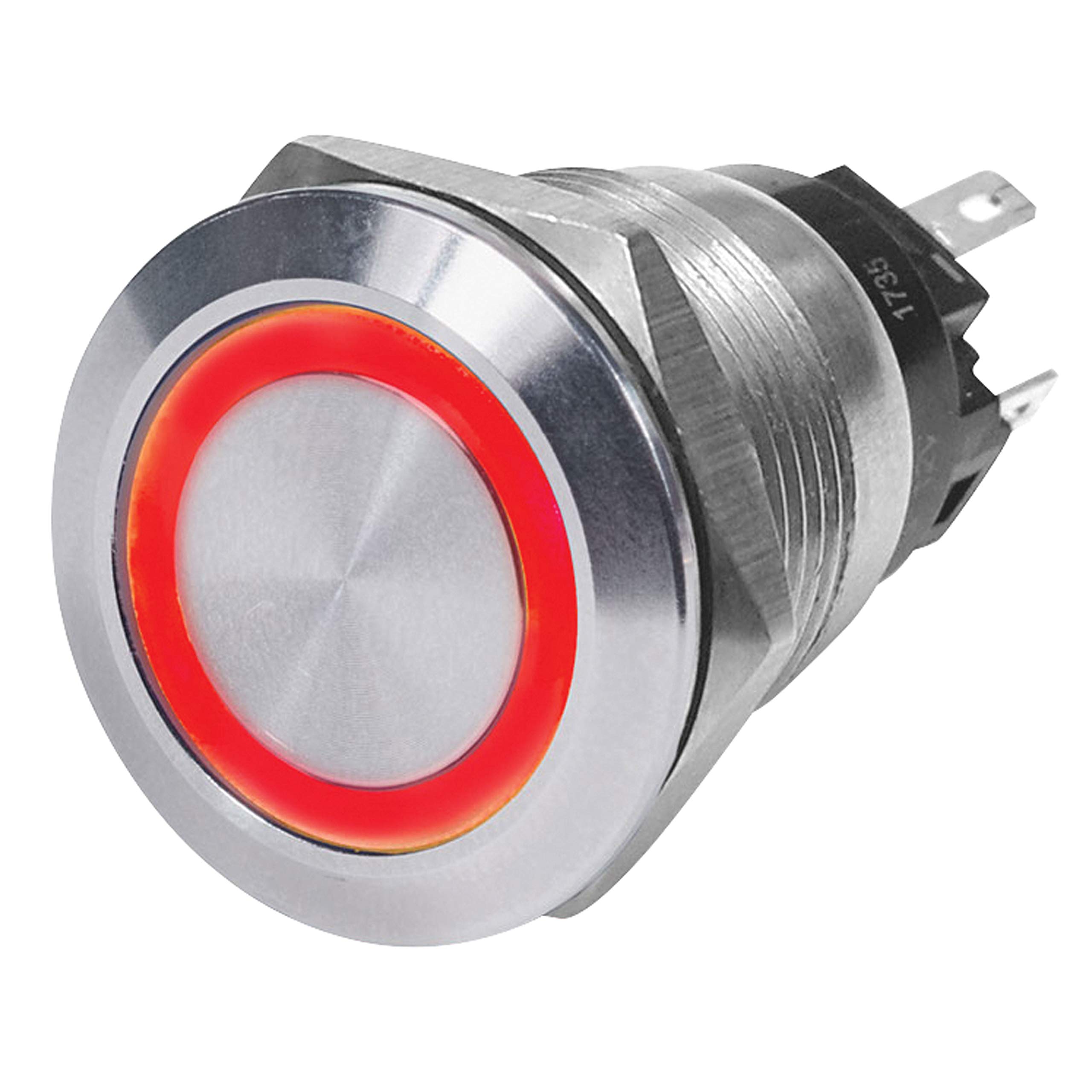

The Blue Sea Systems 4163 is a stainless steel push button switch featuring a red LED ring illumination and Off-(On) momentary action. Designed for marine and automotive applications, this switch is rated for 10A continuous at 12V DC and provides reliable control for accessory circuits, navigation equipment, and cockpit panels.

Key Features:

• Off-(On) momentary action - spring returns to off position when released
• 10A continuous rating at 12V DC
• Red LED ring with independent illumination circuit (20mA maximum)
• Stainless steel construction for corrosion resistance
• Single Pole Double Throw (SPDT) or Single Pole Single Throw (SPST) configuration
• Can be wired for normally open or normally closed operation
• Five 0.110-inch quick connect terminals for easy installation
• 19mm mounting hole diameter
• Rated for 18,000 switching cycles

Technical Specifications:

• Amperage: 10A at 12V DC
• Operating Temperature Range: -10°C to 70°C (14°F to 158°F)
• Storage Temperature Range: -55°C to 85°C (-67°F to 185°F)
• Mounting Hole: 19mm (0.75 inches)
• Termination: 5 × 0.110-inch quick connect terminals (included)
• LED Operating Current: 20mA maximum

The independent LED circuit allows for custom lighting control, making this switch ideal for applications where illuminated feedback is essential. Quick connect terminals simplify installation without soldering.
