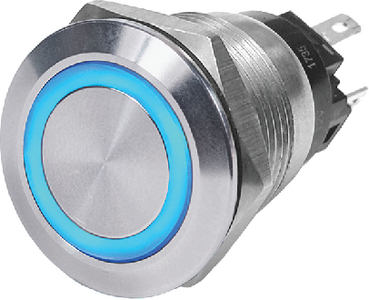

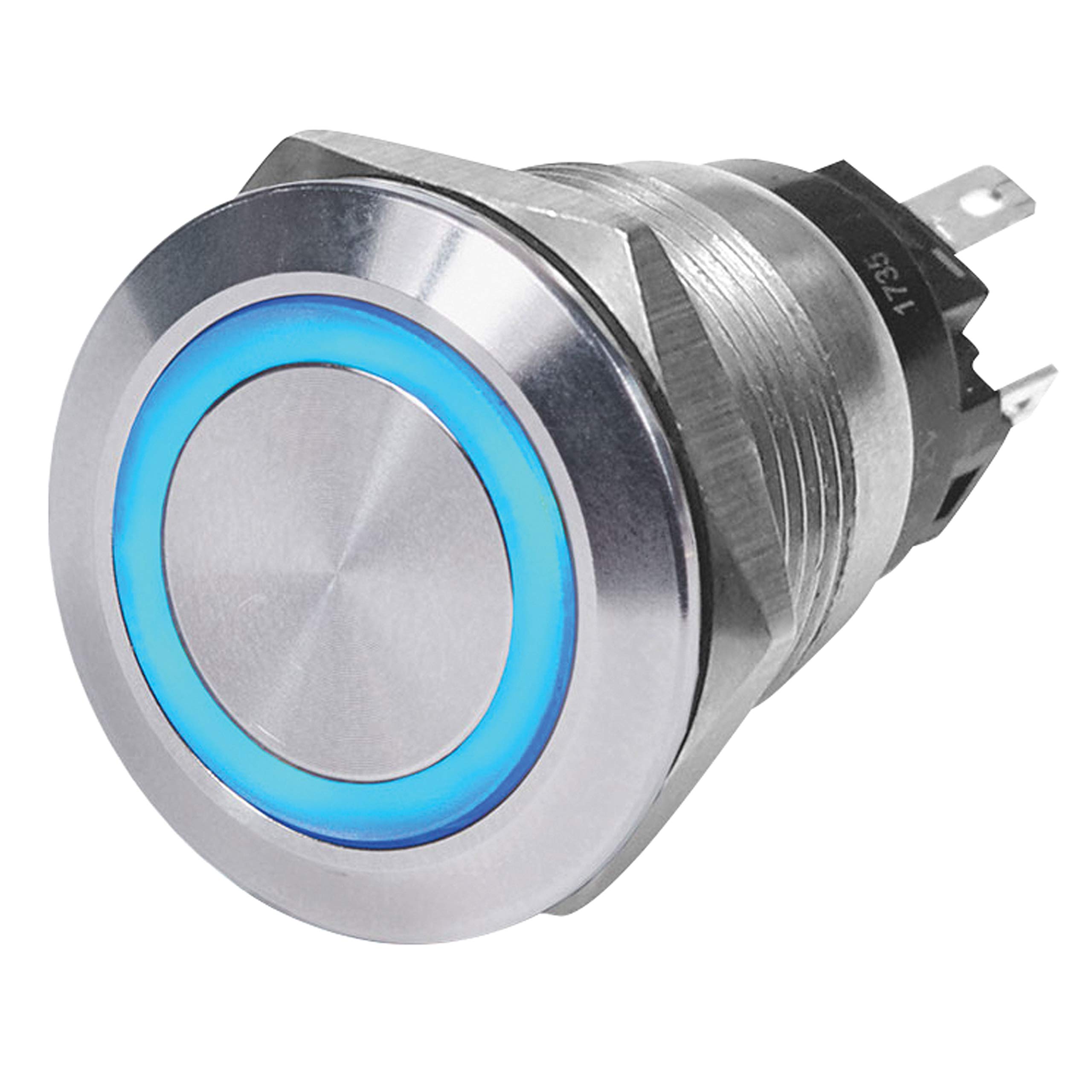

Blue Sea Systems 4161 Push Button Switch Off-(On) Blue LED Ring 10A

The Blue Sea Systems 4161 is a stainless steel push button switch with a blue LED ring indicator, designed for marine and automotive electrical systems. This momentary OFF-(ON) switch features a sleek design with independent LED illumination that operates separately from the switching circuit, allowing for flexible installation options.

Key Features:

• 10A continuous rating at 12V DC for reliable power handling
• Single Pole Double Throw (SPDT) or Single Pole Single Throw (SPST) configuration
• Can be wired for normally open or normally closed operation
• Blue LED ring with independent power control (20mA maximum)
• Stainless steel construction for corrosion resistance
• 19mm mounting hole for standard panel installation
• Quick connect terminals (0.110 inch) included for easy wiring
• Rated for 18,000 switching cycles

Technical Specifications:

• Action: OFF-(ON) momentary
• Amperage: 10A at 12V DC
• Operating Temperature Range: -10°C to 70°C
• Storage Temperature Range: -55°C to 85°C
• Termination: Five 0.110 inch quick connect terminals
• Mounting Hole Diameter: 19mm (0.75 inch)

Ideal for marine applications, RV electrical panels, and automotive accessories requiring momentary switch control with visual LED feedback. The independent LED circuit allows the indicator to operate regardless of switch state.
