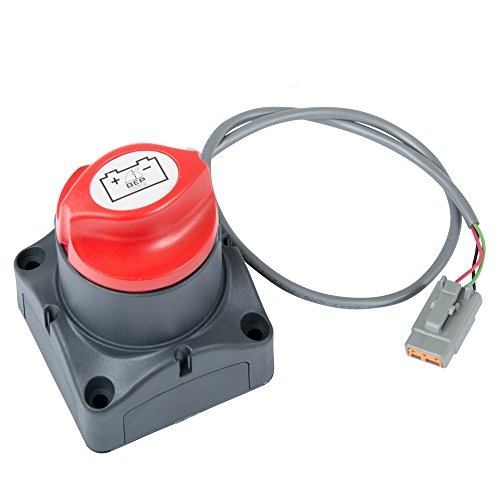

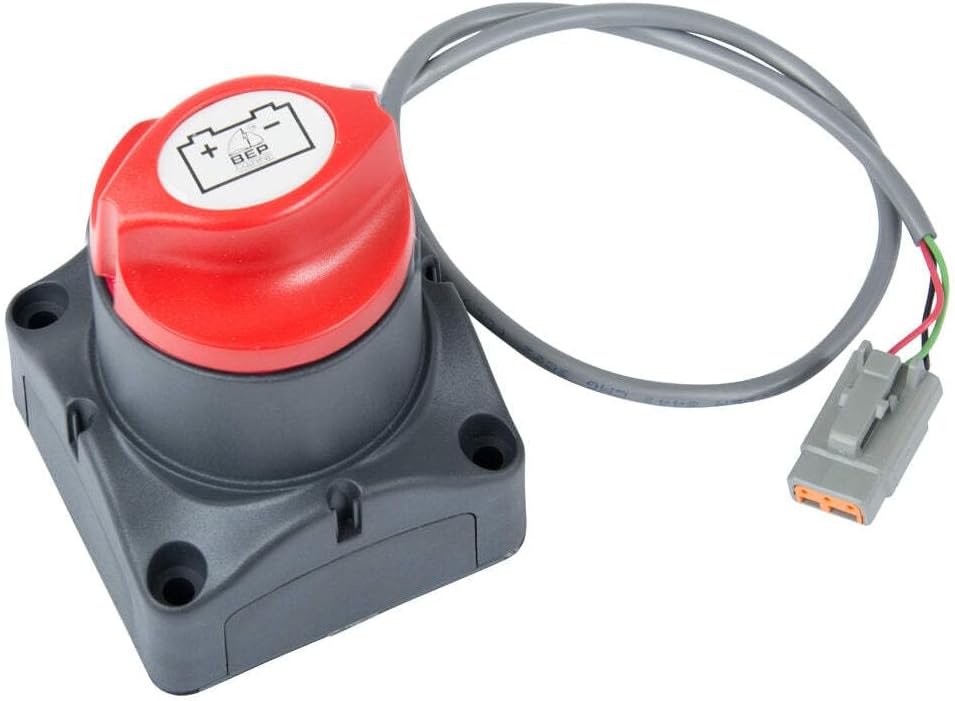

BEP Marine 701-MD-D Remote Operated Battery Switch 275A Continuous Deutsch Connector

The BEP Marine 701-MD-D is a remote operated battery switch designed to manage high electrical loads on modern marine vessels while reducing installation complexity and cost. With a 275A continuous rating and Deutsch connector, this switch allows installation directly alongside the battery for remote operation, significantly reducing battery cable lengths and sizes.

Key Features:

• Remote operation capability with LED status identification on control switch
• 275A continuous rating, 455A intermittent, 1250A cranking capacity
• Mount alongside battery to minimize cable runs and reduce copper cable costs and weight
• Manual override option meets CE/ABYC safety requirements
• Operates on 9.5-32V DC systems with only 12mA power draw when off
• Ideal for remote isolation of bow thrusters, stern thrusters, and high-load accessories
• Dual 3/8" (10mm) stud terminals for secure battery connections
• Compatible with BEP interchangeable labeling system (items #713 or #715)
• Same mounting footprint as standard BEP battery switches for easy integration

Specifications:

• Dimensions: 2.7" L x 2.7" W x 4" H
• Function: On/Off
• Connector Type: Deutsch plug for reliable marine connections

This remote battery switch is perfect for applications where the battery bank is located far from the helm or control panel, reducing installation labor and material costs while maintaining full electrical system control.
