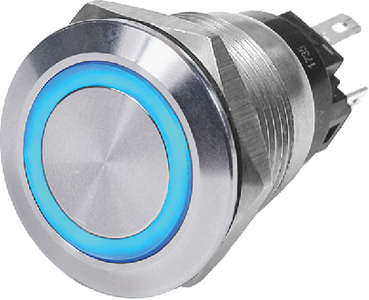

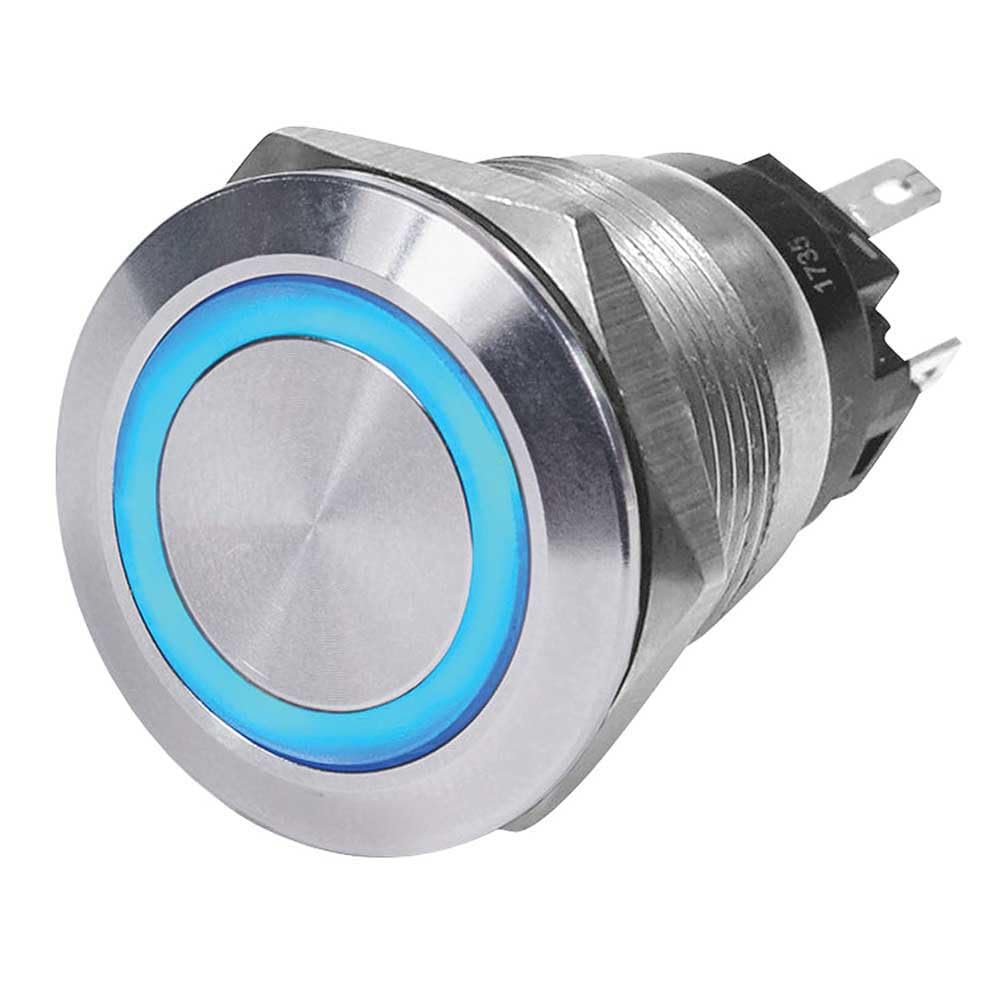

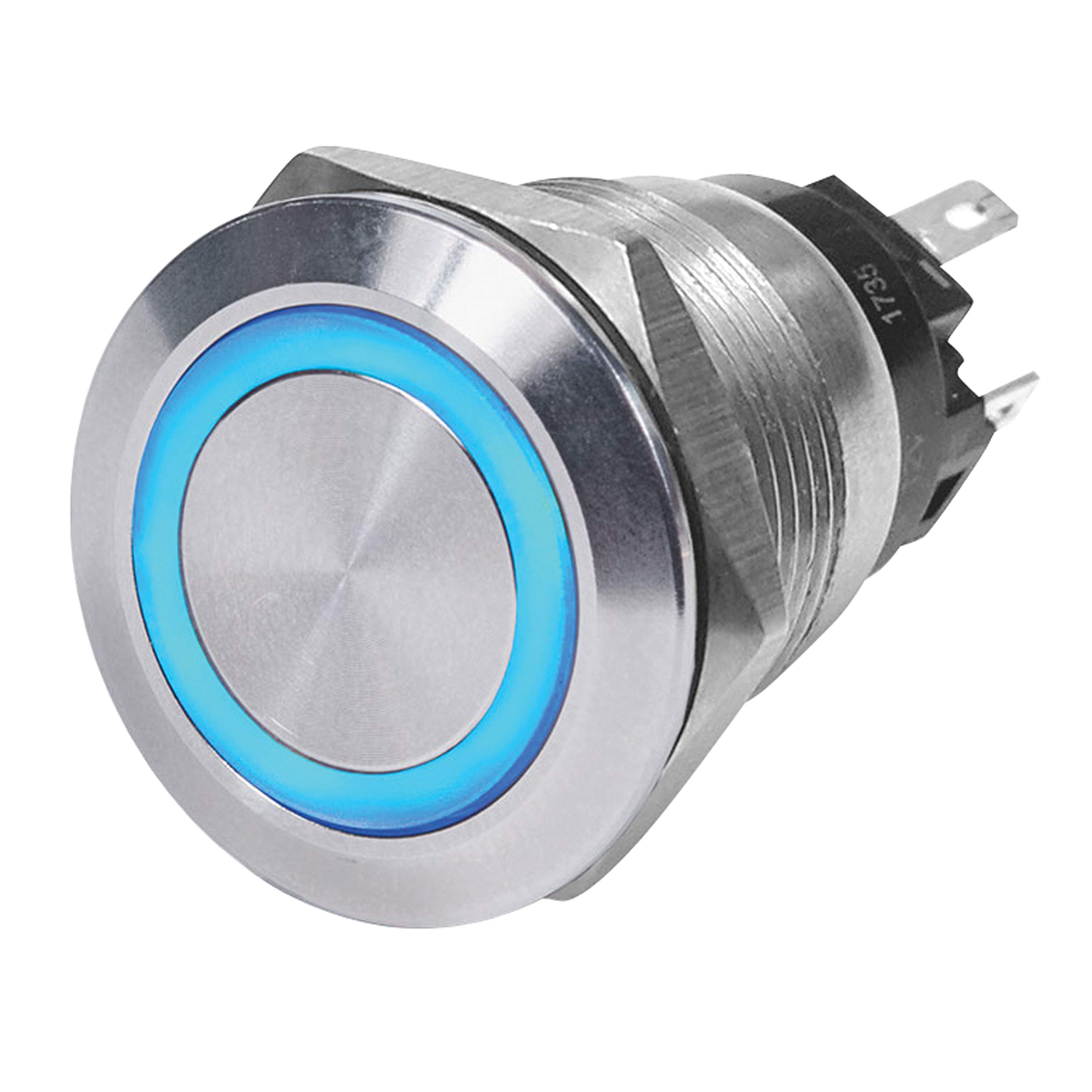

Blue Sea Systems 4160 Push Button LED Ring Switch Blue Off-On 10A

The Blue Sea Systems 4160 is a stainless steel push button switch with an illuminated blue LED ring, designed for marine and mobile electrical systems. This compact, robust switch provides reliable Off-On switching with a 10A continuous rating at 12V DC.

Key Features:

• 10A continuous capacity at 12V DC for reliable switching performance
• Single Pole Double Throw (SPDT) or Single Pole Single Throw (SPST) configuration
• Can be wired for normally open or normally closed operation
• Independent LED illumination with separate power contacts (20mA max)
• Stainless steel construction for corrosion resistance in harsh environments
• 19mm mounting hole for standard panel installation
• Rated for 18,000 switching cycles
• Quick connect termination with five 0.110-inch terminals (included in retail package)

Technical Specifications:

• Action: Off-On (momentary push button)
• Amperage: 10A @ 12V DC
• Nominal Voltage: 12V DC
• Maximum LED Operating Current: 20mA
• Operating Temperature Range: -10°C to 70°C
• Storage Temperature Range: -55°C to 85°C
• Termination: 5 × 0.110-inch Quick Connect terminals
• Mounting Hole Diameter: 19mm

This versatile switch is ideal for controlling navigation lights, bilge pumps, accessory circuits, and other electrical loads on boats, RVs, and specialty vehicles. The blue LED ring provides clear visual indication of switch status in low-light conditions.
