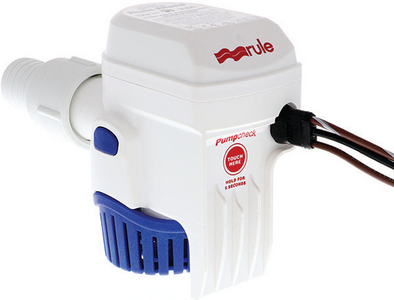

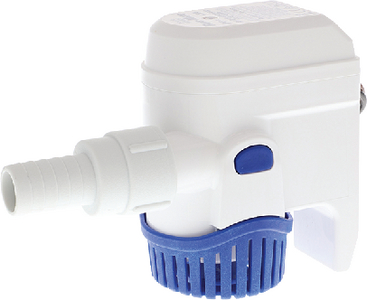

Rule Industries RM1100B Rule-Mate Automatic Bilge Pump 1100 GPH 12V

The Rule Industries RM1100B Rule-Mate is a fully automated bilge pump featuring advanced solid-state water sensing technology that eliminates the need for a separate float switch. This next-generation submersible pump delivers 1100 GPH of powerful water removal while operating at just 12 volts, keeping your bilge clear of nuisance water with intelligent automatic operation.

Auto Sense Intelligence:

The RM1100B utilizes an internal level sensor that automatically activates when water reaches 2 inches (5cm) and shuts off when the water level drops to 3/8 inch (0.9cm). The sensor's unique field effect technology measures dielectric constant and recognizes water only—meaning straight motor oil in the bilge will not activate the pump, making it an eco-friendly choice for protecting our waterways.

Key Features:

• 1100 GPH flow rate with optimized impeller providing up to 10% more flow at the same amperage
• Compact design—2/3 the size of previous models for easier installation in tight spaces
• Built-in backup feature prevents continuous running if sensor becomes fouled by debris; pump reverts to 2.5-minute cycle mode
• Built-in thermal cut-off (TCO) provides added protection for pump and vessel
• Integral check valve for back-flow prevention reduces residual water, minimizing odor
• Hidden air vents help prevent air-locking in challenging plumbing installations
• Threaded discharge port accepts 1 inch or 1-1/8 inch hose barbs (both included)
• Submersible and ignition protected
• Anti-fouling impeller design

Specifications:

• Voltage: 12V DC
• Amp Draw: 3.8A
• Recommended Fuse Size: 7.5 amp
• Flow Rate: 1100 GPH (4164 LPH)
• Discharge Options: 1 inch or 1-1/8 inch threaded hose barbs
• Height: 4.5 inches
• Footprint: Approximately 3.4" L x 2.9" W

What's Included:

• RM1100B bilge pump with integral sensor
• Check valve
• 1 inch hose barb
• 1-1/8 inch hose barb

The Rule RM1100B replaces the previous RM1100A model and comes backed by a 3-year limited warranty. This pump is ISO8846 marine (ignition) and ISO8849 marine (bilge pump) compliant, ensuring reliable performance and safety for your vessel.
