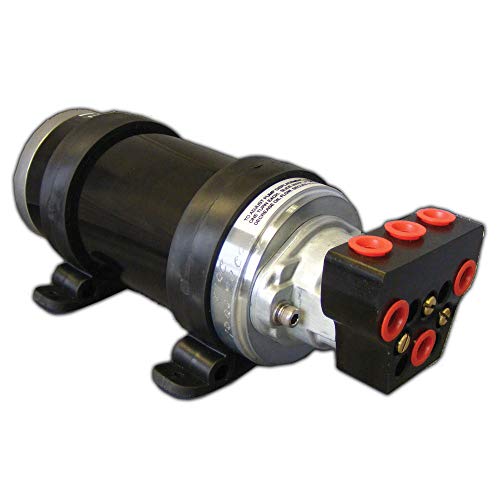

Octopus Autopilot Drives OCTAF1212 Type 2 Reversing Pump 12V 18 CI Cylinder

The Octopus Type 2 Adjustable Reversing Pump is a professional-grade autopilot hydraulic pump designed for vessels up to 65 feet LOA with hydraulic steering systems. This 12V pump operates cylinders from 11-22 cubic inches with exceptional efficiency and precision control.

Advanced Piston Pump Technology:

Unlike competitive gear pumps, this unit features piston pump technology that delivers more than twice the hydraulic output per watt of input power. The simple design has only three moving parts and requires no complicated check valves to prevent rudder movement when de-energized. The pump output is fully adjustable from 50% to 100% of rated flow (600cc to 1.2 liters per minute), allowing precise matching to your steering cylinder volume.

Heavy-Duty Motor Construction:

Powered by a robust permanent magnet motor measuring 85mm in diameter with long-life brushes and sealed ball bearings. Directional control is achieved by reversing the motor input current, providing reliable left or right steering corrections as commanded by your autopilot system. The molded rubber mounting foot rotates 360 degrees for flexible installation on any surface.

Key Specifications:

• Voltage: 12VDC
• Average current draw: 4-6 amps
• Maximum current: 19 amps
• Cylinder capacity: 11-22 cubic inches
• Adjustable flow rate: 600cc to 1.2 liters per minute
• ORB port connection manifold included
• Compatible with optional valves and FET switching accessories

The Type 2 pump's modular design accepts professional cut-off valves that mount directly to the pump body for simplified servicing, plus optional solid-state FET switches for enhanced control. Ideal for both new installations and autopilot system upgrades on mid-sized recreational and commercial vessels.
