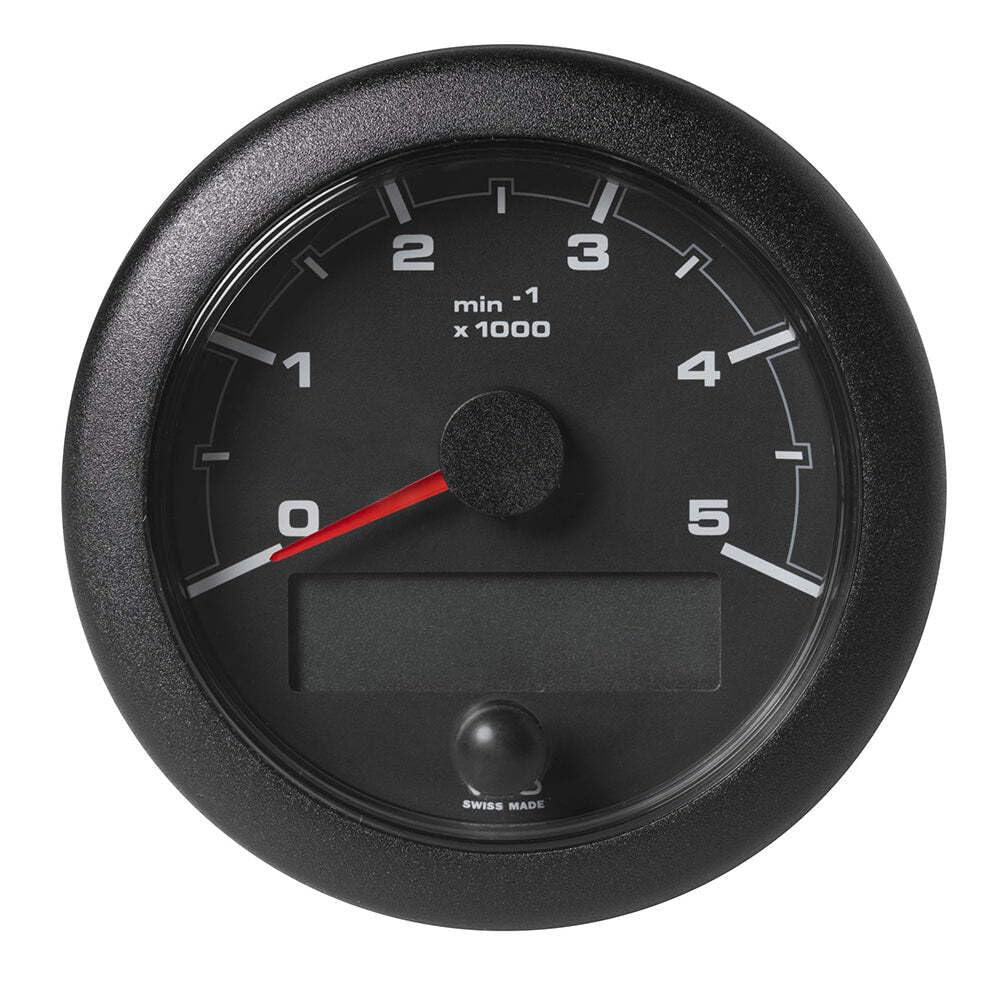

VDO Gauges A2C1065720001 Veratron OceanLink NMEA 2000 Marine Tachometer 5000 RPM 85mm Black

The Veratron OceanLink A2C1065720001 is a 3-3/8" (85mm) NMEA 2000® certified marine tachometer with a 5000 RPM range, featuring a black dial and bezel. As the master instrument in the OceanLink ecosystem, it automatically consolidates and displays critical engine data — including oil pressure, fuel consumption, and operating hours — on a large inverted dot matrix LCD display (132 x 33 px).

Built on the Veratron OceanLink platform, this tachometer connects via NMEA 2000® and SAE J1939 CAN bus protocols and can distribute live engine data to up to 16 satellite gauges via EasyLink, with updates transmitted every 20 milliseconds. The proprietary EasyLink connection simplifies wiring and reduces installation time and cost. Two analog sensor inputs provide additional flexibility for legacy or non-networked sensors.

Key Features:

• RPM Range: 0–5000 RPM
• Display: Inverted dot matrix LCD — 132 x 33 px
• Connectivity: NMEA 2000®, SAE J1939, EasyLink
• Analog Inputs: 2x resistive, 1x frequency
• NMEA 2000® Input: 1x (Micro-C connector)
• J1939 and Analog Input: 1x (AMP Superseal plug)
• Output: NMEA 2000, EasyLink, alarm output
• Satellite Gauge Support: Up to 16 EasyLink gauges
• Nominal Voltage: 12V / 24V
• Operating Voltage: 9–32V
• Current Consumption: ≤100 mA + 100 mA per EasyLink satellite gauge
• Protection Rating: IPX7 (waterproof)
• Operating Temperature: -20°C to +70°C (-4°F to +158°F)
• Reverse Polarity Protection: Yes
• Anti-Fog Double Layer Plastic Lens: Yes
• Mounting Hole Diameter: 85mm (3-3/8")
• Outer Diameter: 105mm
• Dial / Bezel Color: Black

The OceanLink tachometer serves as the central hub for Veratron's 52mm satellite gauge network, making it an ideal choice for builders and boaters looking to create a clean, fully networked marine instrument panel. UPC: 7640178720961.
