Balmar XT-SF-170-DV-KIT 170 Amp Alternator Charging Kit Single Foot Dual Vee Pulley 12V

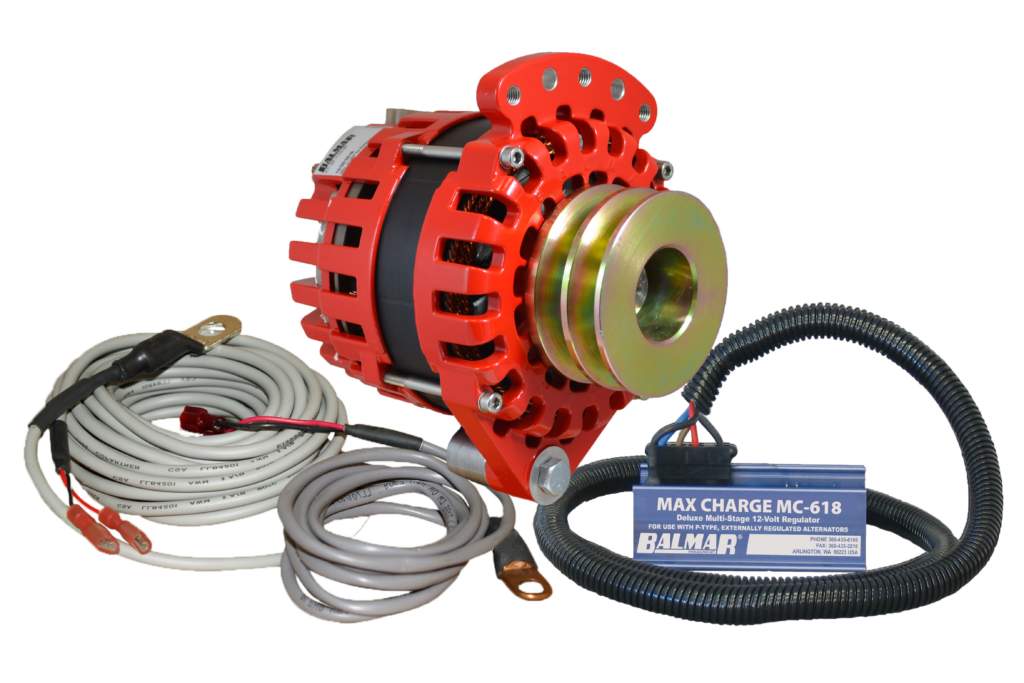

The Balmar XT-SF-170-DV-KIT is a complete high-performance alternator charging system designed specifically for marine applications. This comprehensive kit includes the XT-Series 170 amp alternator with dual deep vee pulley, MC-618 Max Charge multi-stage external regulator, alternator and battery temperature sensors, and all necessary mounting hardware.

XT-Series Alternator Features:

• 170 amp output in a compact case design with up to 140 amps available at idle speeds
• 12 volt output with case ground configuration
• State-of-the-art braided wire stator with 96-slot design for superior electromagnetic efficiency
• Patented Smart Ready® internal voltage regulator technology with option for MC-618 external regulation
• Dual fan cooling with high airflow frame for optimal heat dissipation
• Operates 9-18°F cooler than previous AT-Series 165A designs
• Dual 1/2" deep vee belt pulley with 5.2 HP power take-off
• High reliability bearings and robust rectifier diodes for extended service life

Versatile Mounting Options:

• 1" Motorola-style spindle mount (single foot) typical for Westerbeke, Lehman, Hino, and Pathfinder engines
• Includes adapter for 2" Delco-style spindle mount (single foot) typical for Volvo Penta (gas and diesel), John Deere, Perkins, Mercruiser, Pleasurecraft, Crusader, Indmar, Marine Power, and other GM-based engines

Certifications: USCG Title 33, CE, ISO 8846, and SAE J1171 certified for marine use. Ideal for large battery banks including lithium battery systems. This kit replaces Balmar part numbers AT-SF-MC-165-KIT and AT-SF-165-DV-KIT.
