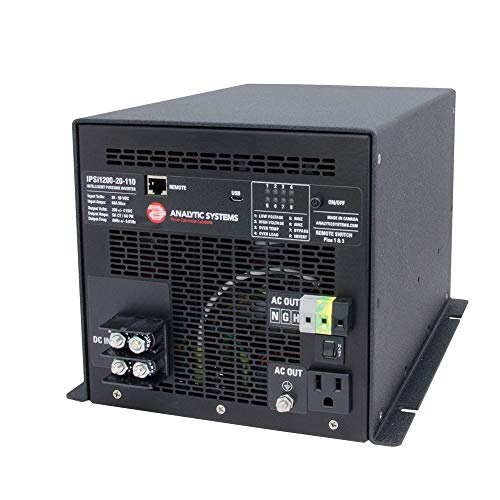

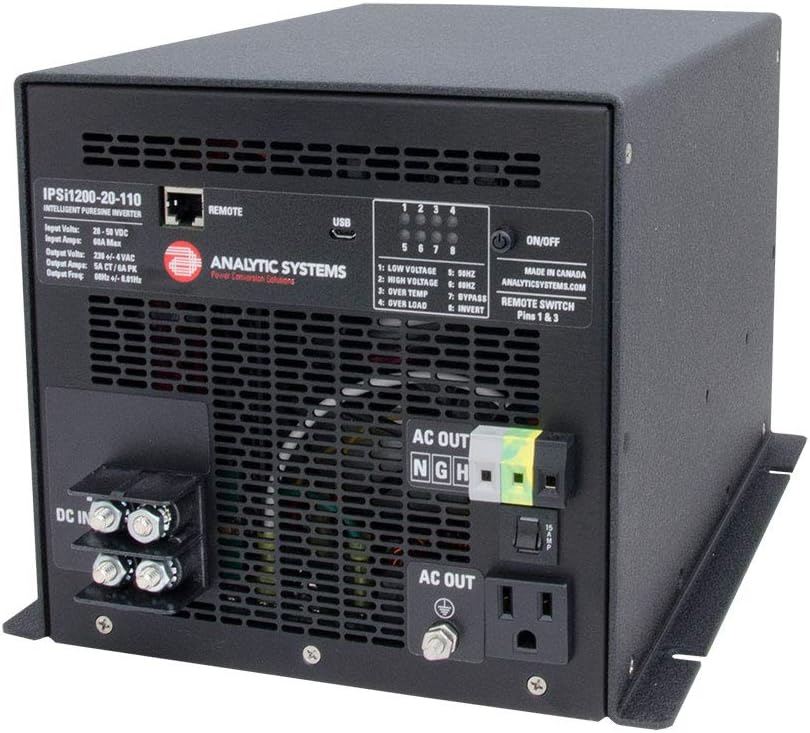

Analytic Systems IPSI1200-20-110 Pure Sine Wave Inverter 1200W 20-40V to 110V

The Analytic Systems IPSI1200-20-110 is a high-performance pure sine wave inverter that delivers 1200 watts of clean AC power from a 20-40V DC input source. Utilizing advanced Digital Signal Processor (DSP) controlled high-power MOSFET technology, this inverter produces a pristine low-voltage sine wave that feeds into a compact toroidal step-up transformer, generating exceptionally clean, low-EMI 110V AC output.

Programmable Configuration:

Using the free Power Wizard software, users can fully customize inverter parameters including output frequency, output voltage, and low voltage shutdown thresholds through a standard micro-USB interface from any laptop. This flexibility makes the unit ideal for specialized applications requiring non-standard AC specifications.

Key Features:

• DSP-controlled pure sine wave output for sensitive electronics
• Programmable output voltage and frequency via Power Wizard software
• Programmable low voltage shutdown protection
• Current limiting and short circuit protection
• Inrush protection during DC source connection
• Over-temperature de-rating and automatic shutdown
• Low input voltage warning and shutdown
• Optional offline UPS mode routes external AC through inverter for automatic failover
• Hardwired AC output connection for secure installations
• Compact toroidal transformer design minimizes electromagnetic interference
• Three-year parts and labor warranty

The IPSI1200-20-110 is ideal for marine, RV, telecommunications, and industrial applications where reliable, clean AC power must be generated from battery banks or DC power systems. The offline UPS option provides added reliability by automatically switching to battery power if external AC fails.
