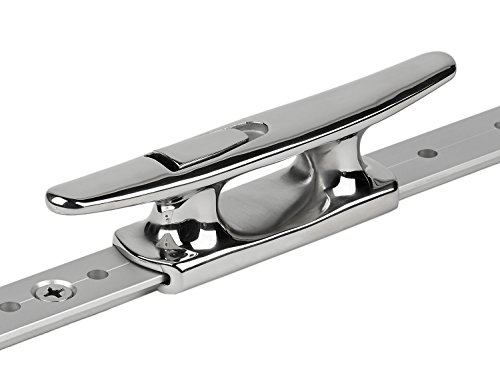

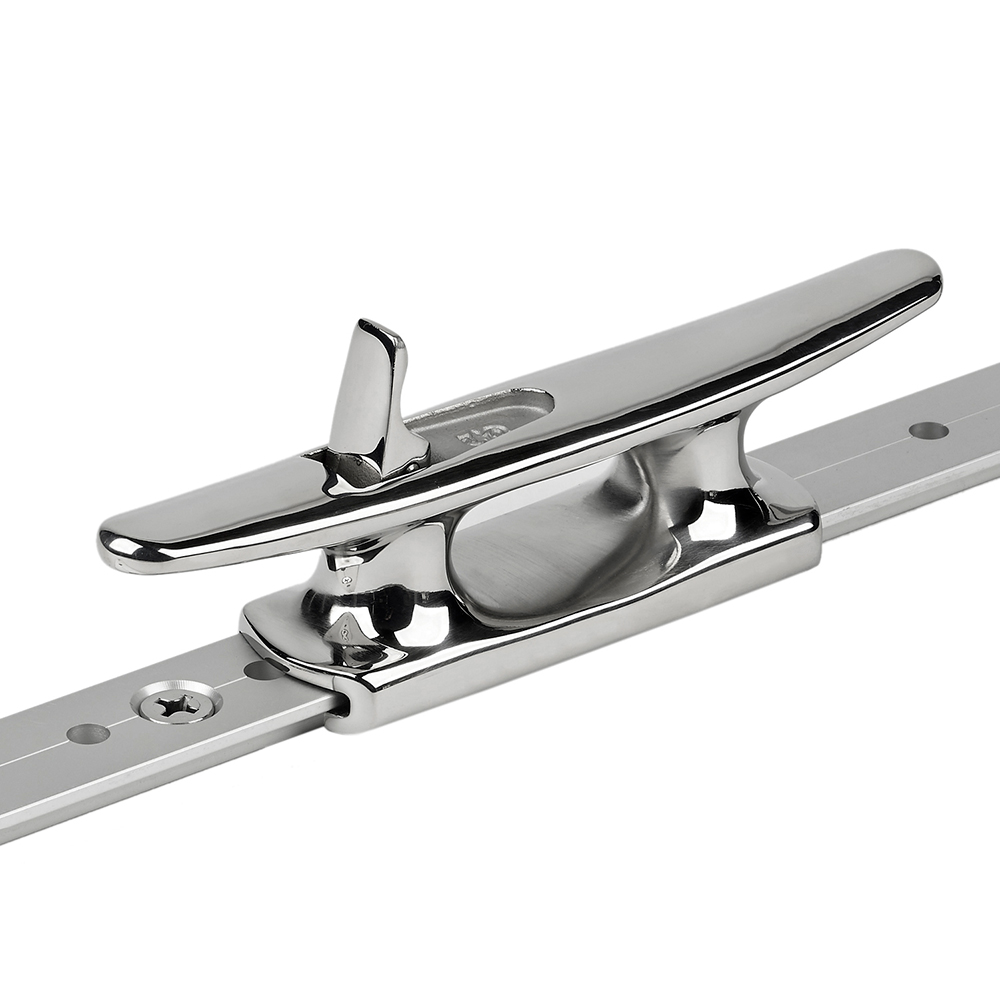

Schaefer Marine 70-75 Mid-Rail Chock and Cleat Stainless Steel 1-1/4 Inch T-Track

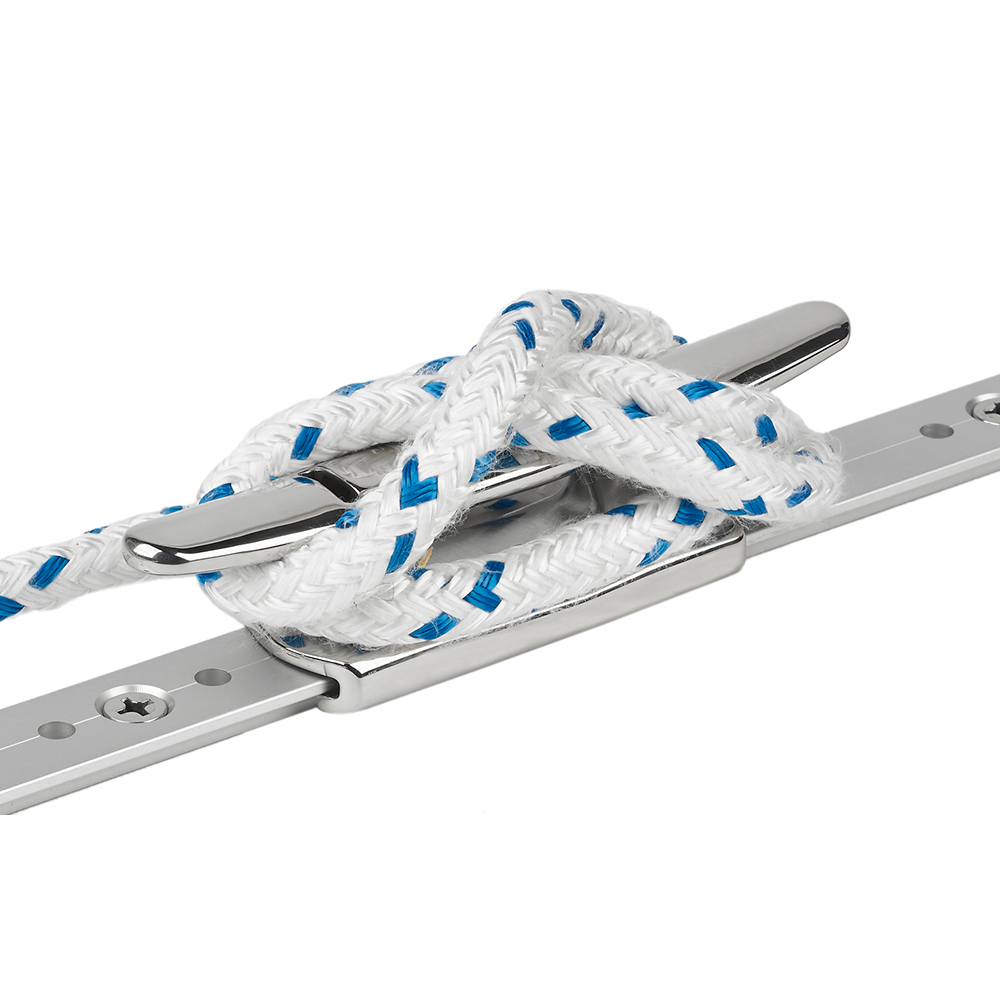

The Schaefer Marine 70-75 is a marine-grade stainless steel mid-rail chock and cleat combination designed for secure line management on sailboats and powerboats. This dual-purpose fitting mounts directly on Schaefer's 1-1/4 inch T-track system, providing both a fairlead and cleat function in a single compact unit.

Key Features:

• Precision-machined stainless steel construction for superior corrosion resistance
• Accommodates lines up to 5/8 inch (16mm) diameter
• Safe working load of 4,500 lbs (2,045 kg)
• Compatible with Schaefer T-track: 1-1/4" wide x 3/16" T-thickness x 11/16" base width
• Quick-mount design allows repositioning along track without removing fasteners
• 7-1/2 inch overall length with 1-3/4 inch internal diameter

Specifications:

• Length: 7-1/2 inches (190mm)
• Internal Diameter: 1-3/4 inches (45mm)
• Maximum Line Size: 5/8 inch (16mm)
• Track Compatibility: 1-1/4" x 3/16" (31mm x 4.6mm)
• Pin Size: 0.355 inches
• Safe Working Load: 4,500 lbs (2,045 kg)
• Weight: 1.5 lbs (0.68 kg)

Important Compatibility Note: This chock/cleat is specifically designed for current Schaefer T-track with dimensions of 1-1/4" width, 7/16" overall height, 3/16" T-thickness, and 11/16" base width. It will not fit earlier versions of Schaefer T-track or some competitor track systems.
