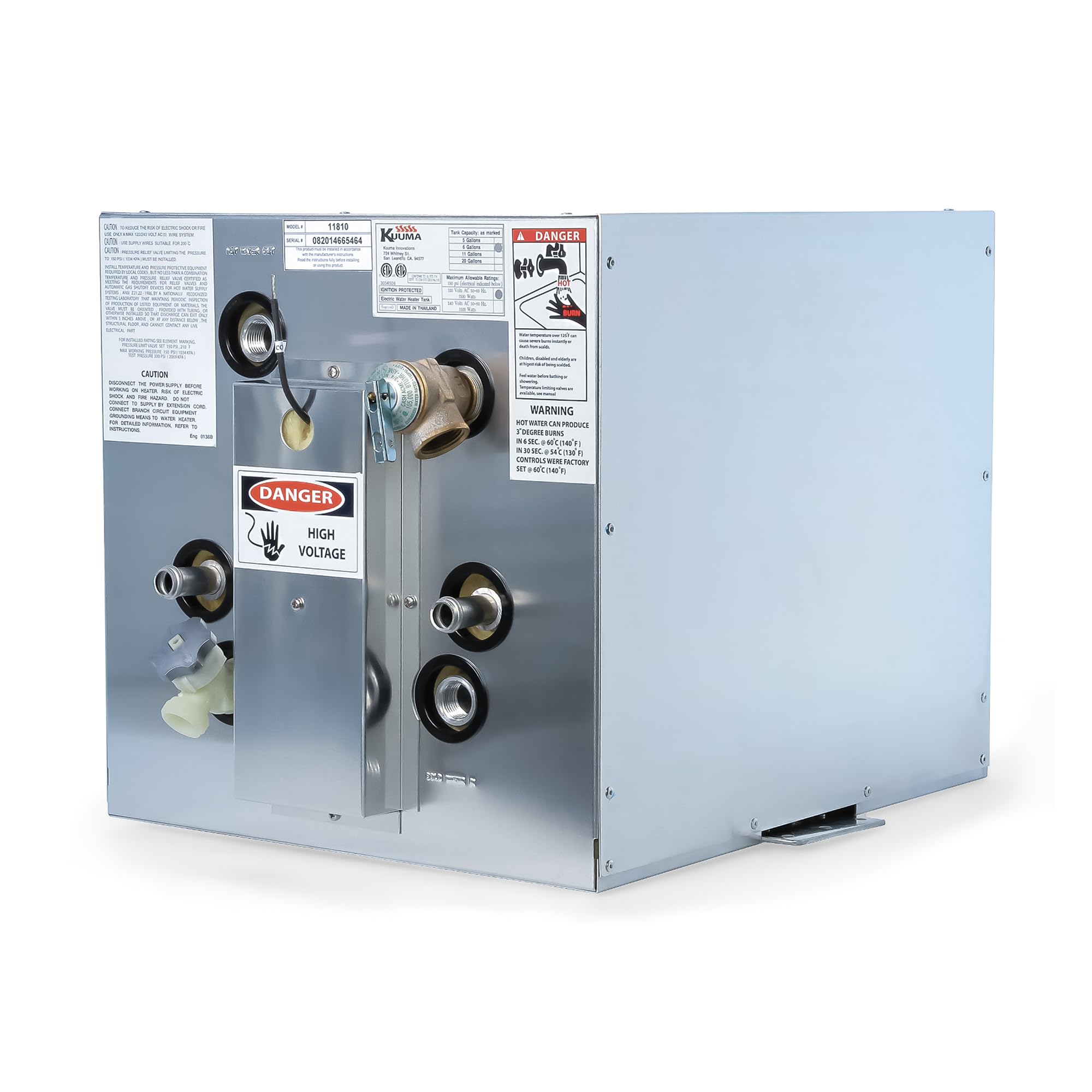

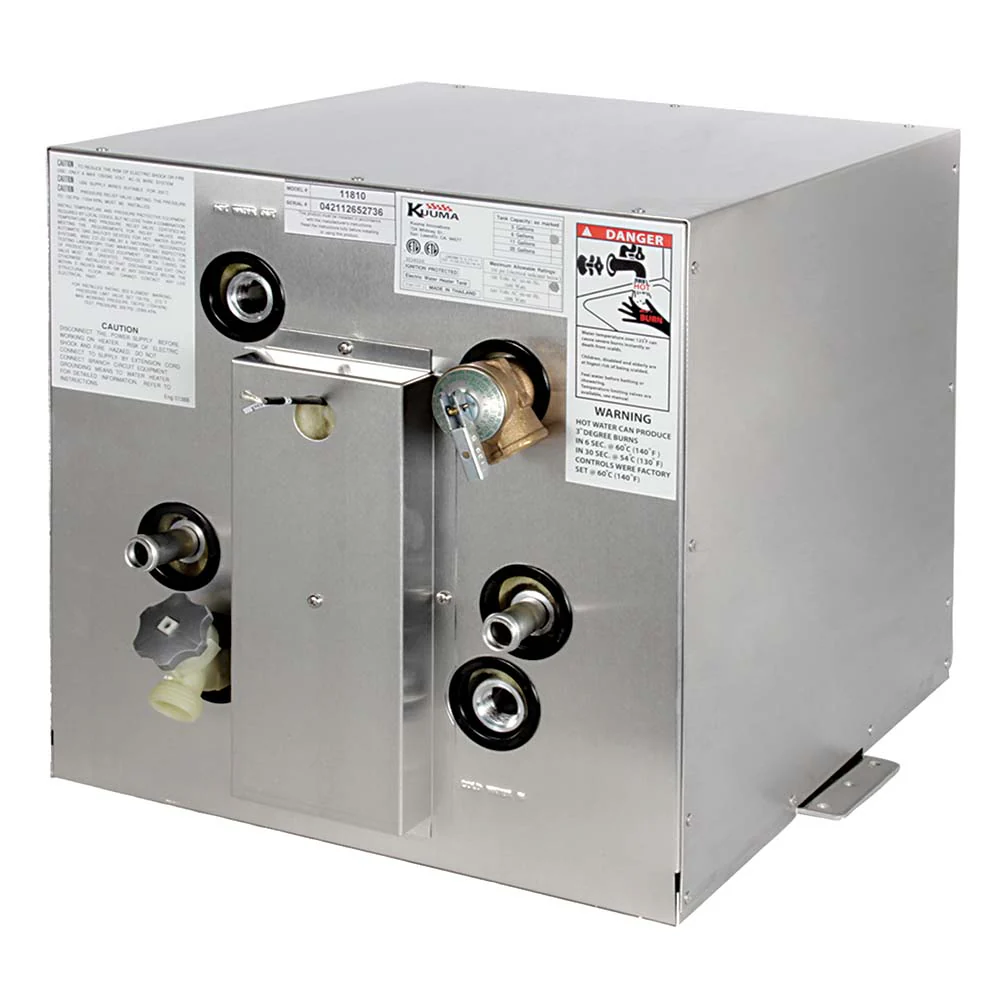

Kuuma Products 11810 6-Gallon Marine Water Heater with Heat Exchanger, 120V Side Mount

The Kuuma Products 11810 is a premium 6-gallon marine water heater designed for boat installation, offering dual-source heating flexibility for life both at the dock and underway. When connected to shore power, the 1500W, 120V electric element heats water efficiently; when the engine is running, the integrated front-mounted aluminum heat exchanger harnesses engine coolant heat to deliver hot water without drawing on electrical power.

Built specifically for the marine environment, the tank and housing are constructed from corrosion-resistant, TIG-welded marine-grade aluminum, minimizing galvanic corrosion risks common in saltwater environments. The unit features ignition-protected controls, making it safe for installation in engine compartments and other areas where fuel vapors may be present. A manual reset and pressure relief valve are included for added safety.

Key Features:

• Dual-source heating: 120V/1500W electric element plus front-mounted engine heat exchanger
• TIG-welded aluminum tank with aluminum alloy case for corrosion resistance

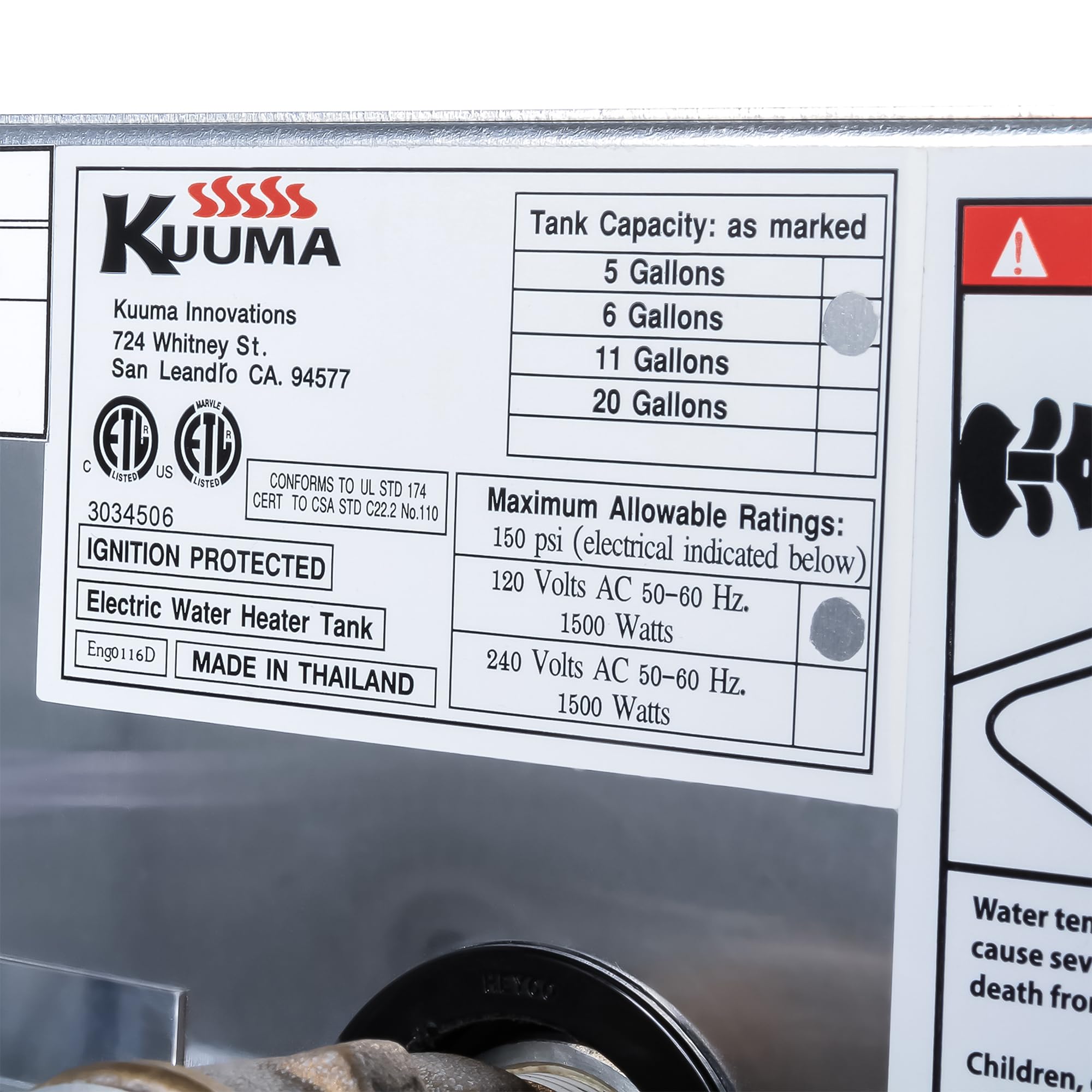

• UL listed to UL 174 — ignition-protected controls for marine safety
• Side-mount (side-to-side) mounting brackets included
• Manual reset thermostat
• Pressure and temperature (T&P) relief valve: 150 psi / 210°F, CSA rated
• Maximum water temperature: 210°F

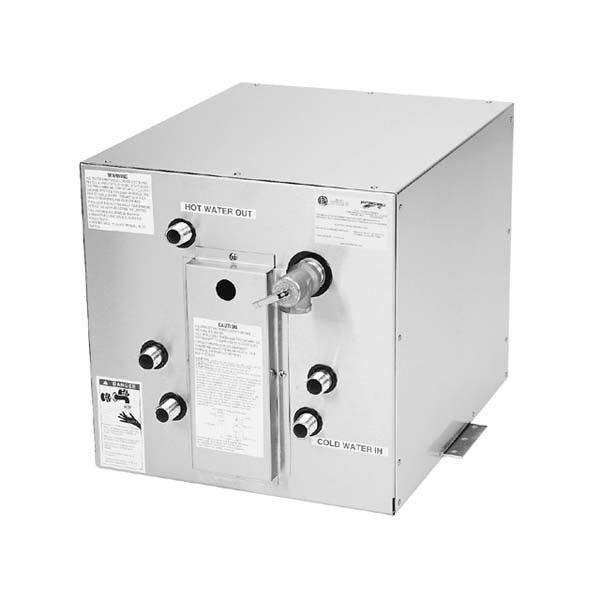

• Hot/cold water connections: 1/2" NPT
• L1 & N wiring configuration

Technical Specifications:

• Capacity: 6 Gallons
• Electrical Input: 120V – 60Hz / 1500W
• Heat Exchanger Position/Material: Front / Aluminum
• Orientation: Horizontal
• Mount Arrangement: Side-Side
• Dimensions (W x H x D): 15-5/8" x 13-5/8" x 19-3/8"
• Weight: 22 lbs

The Kuuma 11810 is an ideal choice for new installations or as a drop-in replacement for an existing marine water heater, delivering reliable hot water for the galley and head aboard your vessel.
