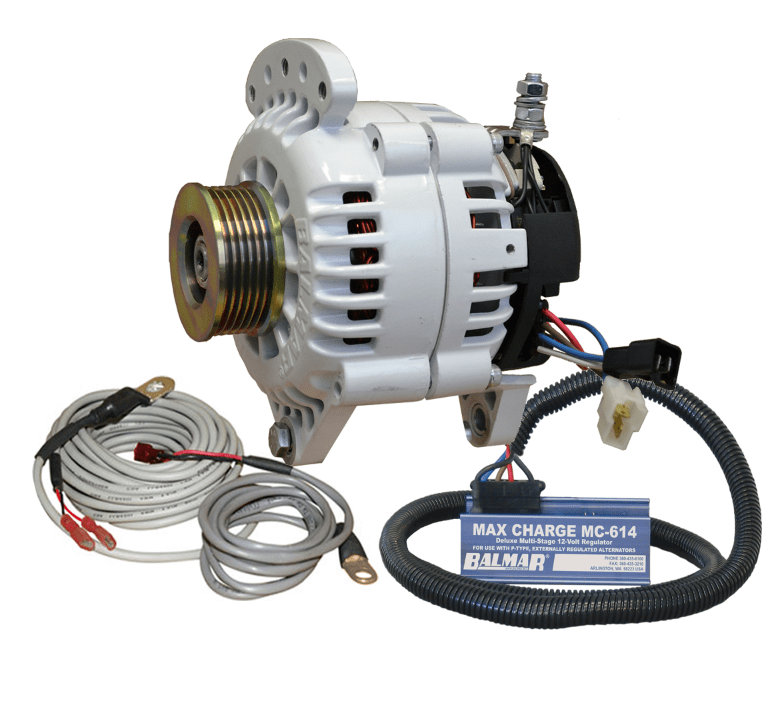

Balmar 60YP-MC-100-K6 100 Amp 12V Marine Alternator Charging Kit with MC-614 Regulator

The Balmar 60-YP-MC-100-K6 is a complete 6-Series marine alternator charging kit delivering 100 amps at 12 volts through a 3.15" dual foot (saddle mount) configuration with a K6 serpentine pulley and isolated ground. Featuring Hitachi-style mounting, this kit is a popular choice for Yanmar, Westerbeke, Lehman, and Perkins-Sabre diesel engines.

This kit bundles everything needed for a complete high-output charging system upgrade, pairing the 60-100-K6 alternator with Balmar's renowned Max Charge MC-614 multi-stage voltage regulator and dual temperature sensors for both the alternator and battery bank.

Kit Includes:

• 60-100-K6 Alternator — 100A, 12V, Saddle Mount (Dual Foot), 3.15", K6 Serpentine Pulley, Isolated Ground
• Max Charge MC-614 Regulator — Smart multi-stage voltage regulator compatible with flooded, gel, AGM, spiral wound AGM, and LiFePO4 battery types
• Alternator temperature sensor
• Battery temperature sensor
• Wiring harness
• Installation instructions and programming screwdriver

Key Features:

• Smart Ready® Technology — Patented internal regulation allows the alternator to function as a stand-alone charge controller, serving as a built-in backup regulator for added fault tolerance
• Dual Fan Cooling — High-airflow frame design with dual internal fans for reliable performance in demanding marine environments
• MC-614 Multi-Stage Regulator — Microprocessor-controlled charging with user-selectable programs for all major marine battery chemistries, including LiFePO4
• Temperature-Compensated Charging — Alternator and battery temperature sensors allow the regulator to monitor and respond to ambient conditions, preventing overcharge damage
• Isolated Ground — Required for proper marine electrical system protection
• USCG Title 33, ISO, SAE, and CE Compliant — Meets all major marine safety and electrical standards
• Maximum RPM: 12,000
• Replaces: 60-YP-MC-100-SR-KIT

The 6-Series is Balmar's top-selling alternator line, engineered to deliver high output at low RPM with ruggedized construction for the harsh marine environment. The included MC-614 regulator ensures batteries receive the optimal multi-stage charge profile, significantly reducing charge time compared to a standard OEM alternator.
