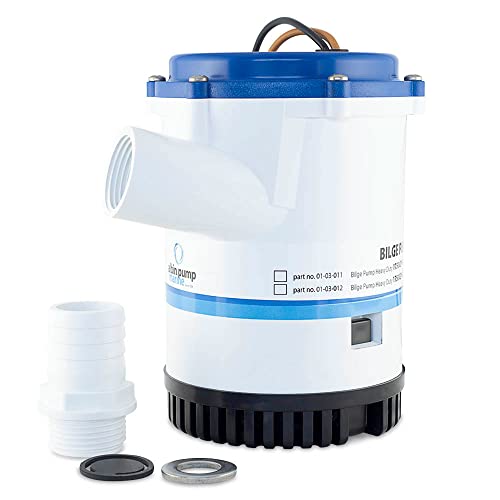

Albin 01-03-013 Heavy Duty Submersible Bilge Pump 2250 GPH 12V

The Albin 01-03-013 is a heavy-duty submersible bilge pump designed for pleasure or commercial boats above 36 feet in length. This 12V pump delivers powerful performance with a maximum capacity of 2250 GPH (140 L/min) at free flow and 1900 GPH (120 L/min) at 1 meter head, ensuring reliable water removal even in demanding conditions.

Key Features:

• Heavy-duty submersible design built for continuous operation
• Stainless steel shaft with double ball bearings for extended service life
• Mechanical seal prevents water intrusion into motor housing
• Tough thermoplastic ABS housing withstands marine environments
• Robust long-life motor design for reliable performance
• Universal base plate with integrated strainer
• Pin mount for T-slot attachment of level switch for automatic operation
• Interchangeable with Rule 2000 and Johnson Pump 22004/32-2200-01

Specifications:

• Voltage: 12V DC
• Pump Capacity: 2250 GPH (140 L/min) free flow, 1900 GPH (120 L/min) at 1m head
• Fuse Rating: 8A
• Port Sizes: 32mm (1.25") and 38mm (1.5")
• Certifications: CE marked 94/25/ECC, ISO 8846 Small Craft, EMC 89/336/EEC, EN 51014 1993

Includes check valve and dual port fittings for flexible installation. The integrated strainer protects the pump from debris while the universal base plate simplifies mounting in tight bilge spaces.
