The Furuno NavPilot 711C-M is a complete autopilot system designed for powerboats with multiple-cylinder hydraulic steering systems. This package includes the 4.3" color control head, processor unit, rate compass, and a 1.6-liter Octopus hydraulic pump for vessels with cylinder volumes from 12 to 23 cubic inches.
Advanced Self-Learning Technology:
NavPilot features adaptive software algorithms that continuously optimize performance based on your vessel's characteristics. The system automatically adjusts for variables including speed, trim, draft, tide, wind effects, and weather conditions, storing these parameters in memory for increasingly precise course-keeping capability over time.
Sunlight-Viewable Color Display:
The 4.3" color LCD display offers excellent visibility in bright sunlight while featuring day/night modes that preserve your night vision in low-light conditions. The intuitive rotary control knob provides easy operation in all sea conditions.
FishHunter Mode:
When integrated with Furuno sonar or radar, the NavPilot can automatically execute search patterns around fish or bird targets. Choose from square, zigzag, circle, orbit, spiral, or figure-eight maneuvers at your selected distance. This feature also functions as an automated Man Overboard recovery pattern. Note: Rudder Reference Unit required to enable FishHunter mode.
Sabiki Mode for Drift Fishing:
Exclusive Sabiki mode maintains steering control while drifting astern at slow speeds, ideal for sabiki fishing, jigging, and bottom fishing. This software-based feature requires no additional hardware and is available on outboard-powered vessels.

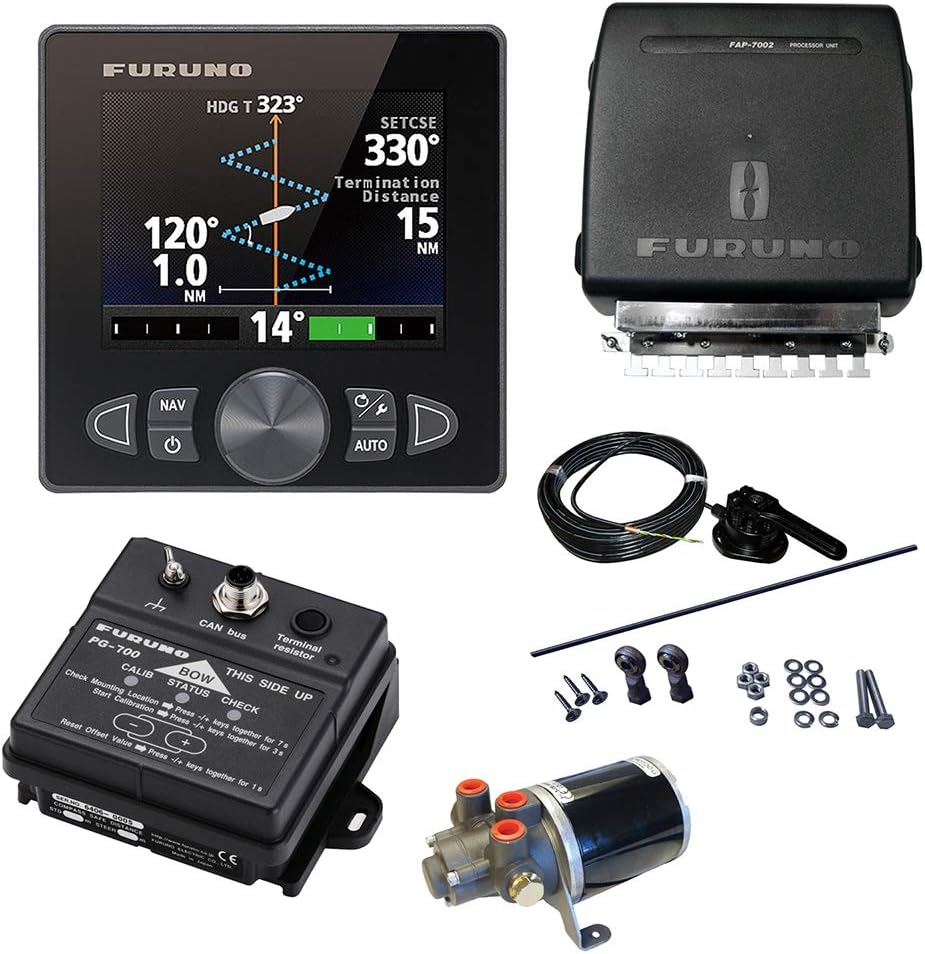

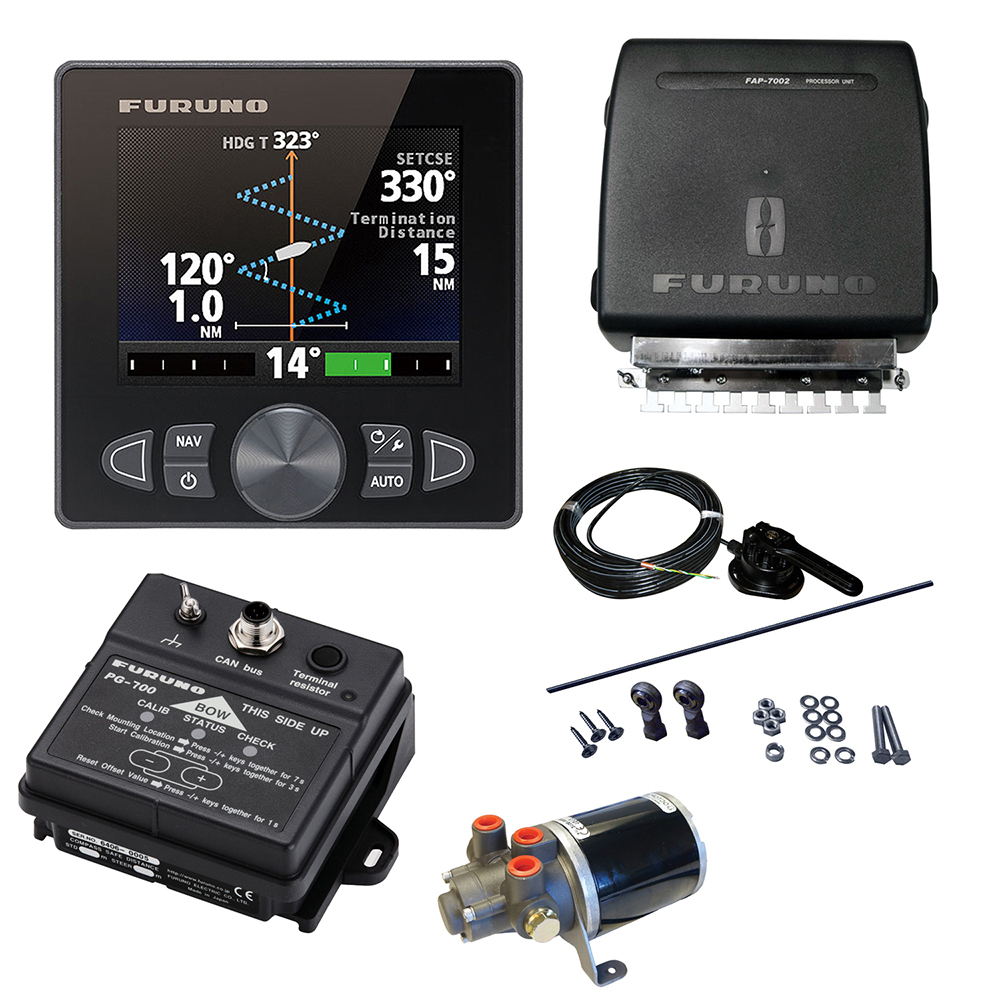

Complete System Includes:
- FAP7011C control unit with 4.3" color display
- FAP7002 processor unit
- FAP6112 Rudder Reference Unit
- PG700 fluxgate magnetic sensor with solid-state rate gyroscope and 6-meter cable
- PUMPOCT16-12 Octopus hydraulic pump (1,600cc/min, 12V) for 12-23 cubic inch cylinders
Compatible with 12/24 VDC electrical systems. Professional installation recommended for proper hydraulic pump integration and system calibration.
