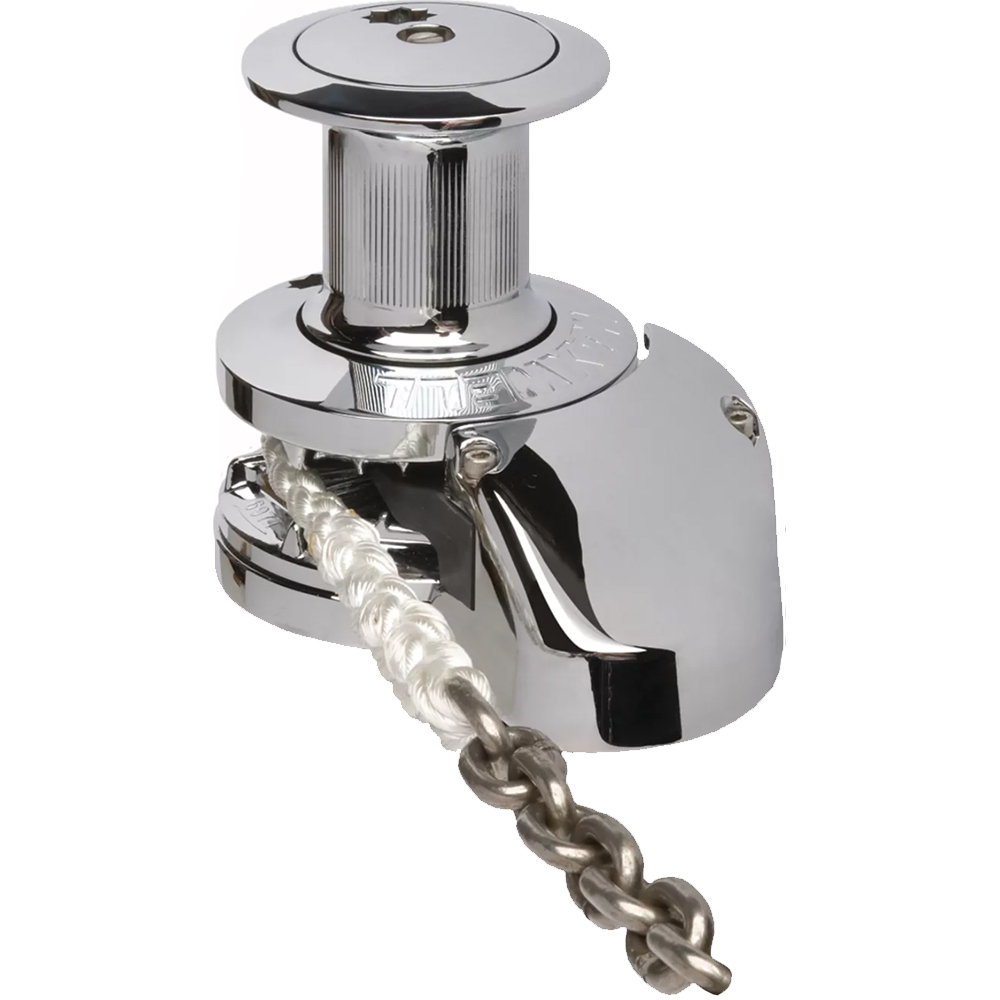

Maxwell RC1010CAP12V RC10-10 Capstan Windlass 12V 1870 lb Capacity

The Maxwell RC1010CAP12V is a fully automatic vertical drum windlass with capstan designed for seamless anchor retrieval and deployment. This below-deck motor unit combines marine-grade 316 stainless steel and chromed bronze construction for exceptional durability in harsh saltwater environments. With a maximum working load of 1870 lbs, it efficiently handles 3/8" (10mm) short link chain at 79 feet per minute or 5/8" (16mm) three-strand or 8-plait rope at 65 feet per minute.

Key Features:

• 1200-watt 12V DC motor provides reliable power for anchoring operations
• Unique rope/chain gypsy with heavy-duty stainless steel pressure arm effectively grasps rope-to-chain splices
• Simple two-piece installation with spacer tube design fits virtually any deck thickness
• Self-aligning gearbox with multiple mounting positions for flexible installation
• Sealed oil bath gearbox with precision worm gear delivers maximum efficiency
• Cone-type clutch/brake mechanism enables manual free-fall anchoring
• Large through-deck hawse pipe throat ensures smooth rode entry and exit
• Full topworks disassembly using only the included handle and Allen key
• Pre-loaded stainless steel spring and bearing-mounted pressure arm maintain optimal control pressure

Includes manual crank handle for emergency operation, circuit breaker for electrical protection, and convenient up/down control switch. The RC10-10's low-profile design and elegant styling make it ideal for forward deck installations while maintaining professional functionality.
