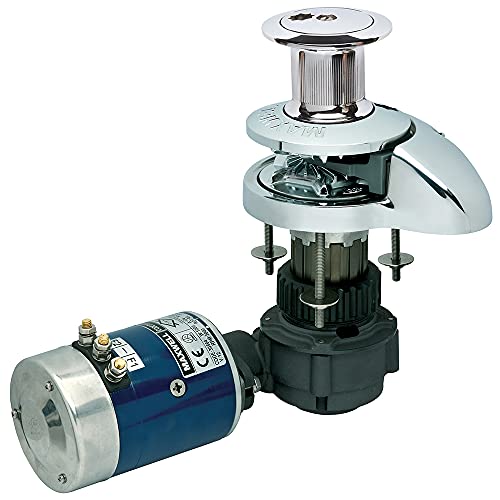

Maxwell RC88CAP12V RC8-8 Windlass with Capstan 12V 5/16" Chain

The Maxwell RC8-8 windlass with capstan combines powerful anchor handling capabilities with innovative design features for boats requiring reliable rope/chain rode management. This 12V electric windlass is engineered to handle 8mm (5/16") chain spliced to 14mm (9/16") three-strand or 8-plait rope, making it ideal for mid-sized cruising vessels.

Wave Design™ Chainwheel Technology:

Maxwell's patented Wave Design™ chainwheel features two breakthrough design concepts that revolutionize rope/chain handling. The outer ribs angle slightly forward to smoothly guide the rope and chain during retrieval, while the opposite-facing inner ribs grip the rope in an undulating wave pattern. This superior holding method is more secure than traditional jam cleat designs and extends rope life by reducing wear on your anchor rode.

Key Features:

• Capstan version with chromed bronze MAX-grip drum for versatile line handling
• Accommodates 5/16" (8mm) chain with 9/16" or 5/8" rope splice
• Works effectively with all-chain rodes or accepts wide range of chain pitch variations
• Simple two-piece installation design allows easy retrofitting without windlass disassembly
• Unique spacer tube design fits virtually any deck thickness with multiple mounting positions
• Heavy-duty stainless steel pressure arm with large-diameter pre-loaded spring maintains optimal control pressure on rope/chain splice
• Oversized through-deck hawse pipe throat ensures smooth rode entry into anchor locker
• Manual override and free fall operation using included emergency crank/clutch handle
• Sealed oil bath in marine-grade hard anodized alloy gearbox with precision worm drive
• Complete topworks disassembly possible using only provided handle and Allen key
• Self-aligning gearbox ensures optimal motor positioning in virtually all installations

The RC8-8 capstan windlass delivers fully automatic dual-direction control with all necessary components included. Its robust construction and innovative features make it an exceptional choice for cruisers demanding reliable anchor handling performance.
