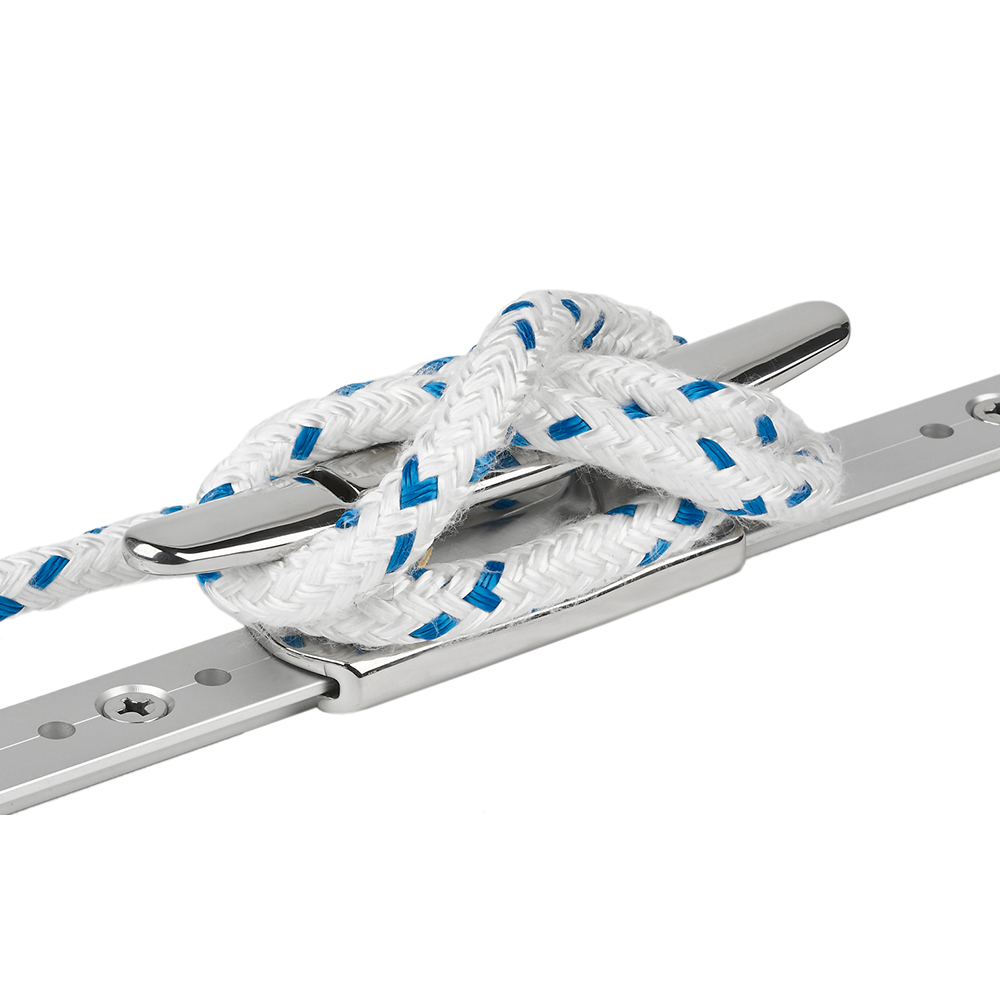

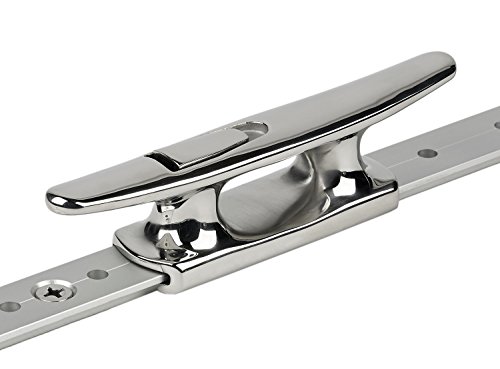

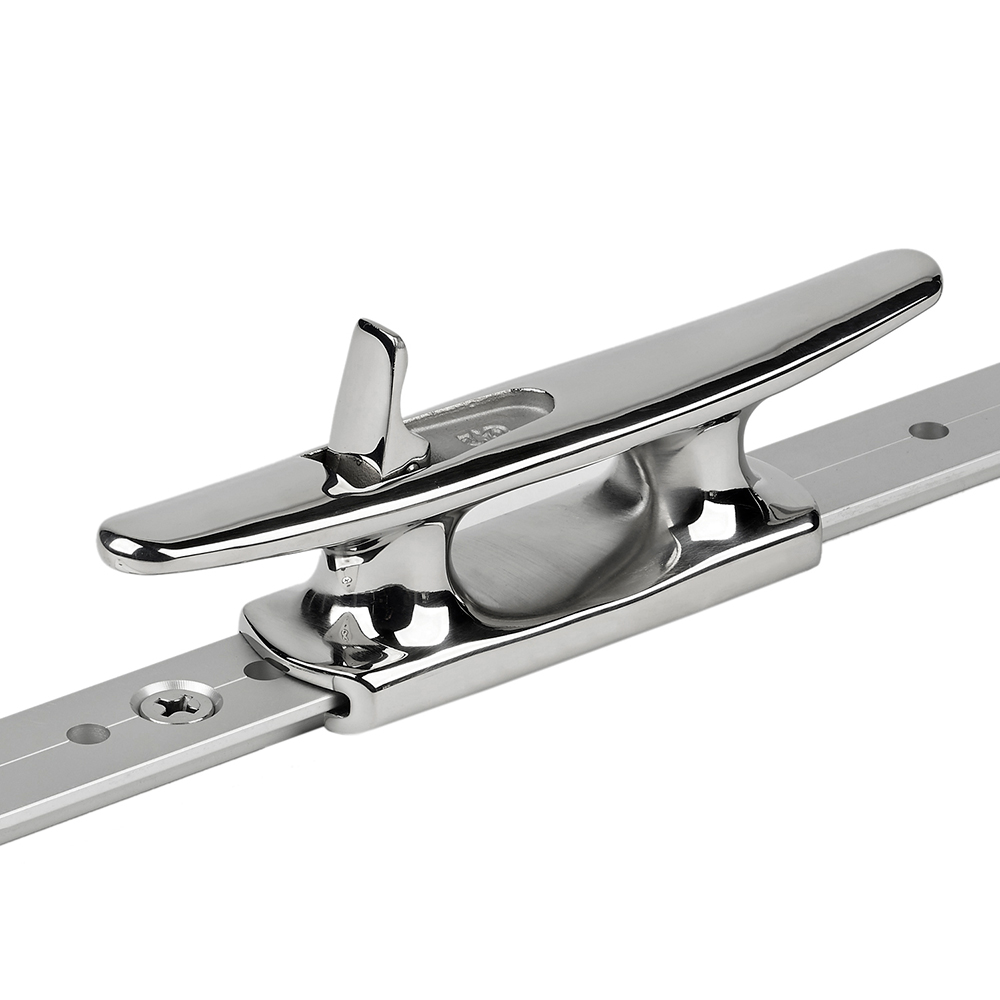

Schaefer Marine 70-74 Mid-Rail Chock and Cleat for 1" T-Track Stainless Steel

The Schaefer Marine 70-74 is a versatile mid-rail chock and cleat combination designed to mount securely on Schaefer 1" T-Track systems. Constructed from marine-grade stainless steel, this chock/cleat provides a reliable attachment point for lines up to 1/2" (13mm) in diameter, making it ideal for halyards, control lines, and dock lines on sailboats and powerboats.

Key Features:

• Marine-grade stainless steel construction for corrosion resistance
• Mounts on Schaefer T-Track: 1" wide x 3/8" overall height x 1/8" "T" thickness with 1/2" base width
• Accommodates line sizes up to 1/2" (13mm) diameter
• Safe working load of 2,500 lbs (1,140 kg)
• Compact 6-1/2" length fits easily along rail systems
• 1/4" stainless steel mounting pin included

Specifications:

• Overall Length: 6-1/2" (165mm)
• Inner Diameter: 1-7/16" (37mm)
• Compatible Track Size: 1" x 1/8" (25mm x 3mm)
• Pin Diameter: 1/4" (6mm)
• Safe Working Load: 2,500 lbs (1,140 kg)
• Weight: 0.9 lb (0.41 kg)

Important Compatibility Note: This chock/cleat is designed specifically for current Schaefer T-Track with the dimensions listed above. It will not fit earlier versions of Schaefer T-Track or some competitor T-Track systems. Please verify your track dimensions before ordering.
