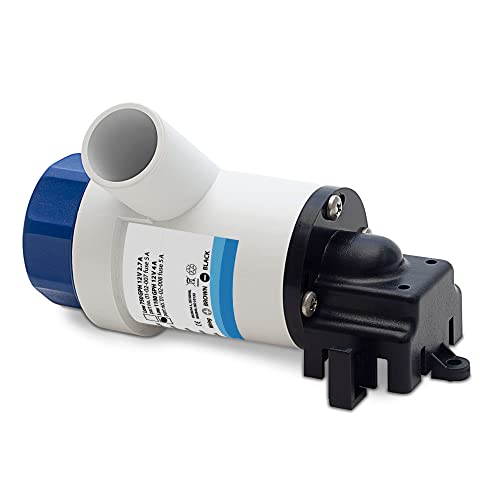

Albin 01-02-008 Cartridge Bilge Pump 1100 GPH 12V Low Profile Submersible

The Albin 01-02-008 is a submersible low-profile bilge pump designed for pleasure boats from 25 to 30 feet. This compact 12V pump delivers 1100 GPH (75 L/min) at free flow and 1000 GPH (65 L/min) at 3-foot head, providing reliable bilge water removal in a space-saving design.

Key Features:

• Durable thermoplastic ABS housing with detachable universal base plate
• Replaceable cartridge motor for easy maintenance and extended service life
• Stainless steel shaft resists corrosion in marine environments
• Integrated strainer and T-slot pin mount for optional float switch installation
• Low power consumption at only 4 amps
• Fixed 29mm (1.15") straight discharge port for secure hose connection

Specifications:

• Voltage: 12V DC
• Flow Rate: 1100 GPH free flow, 1000 GPH at 3-foot head
• Current Draw: 4A
• Recommended Fuse: 5A
• Discharge Port: 29mm (1.15") fixed straight
• Recommended Boat Length: 25-30 feet

The compact cartridge design allows for installation in tight bilge spaces while maintaining easy access for servicing. The universal base plate simplifies mounting and includes provisions for automatic operation when paired with a compatible level switch.
