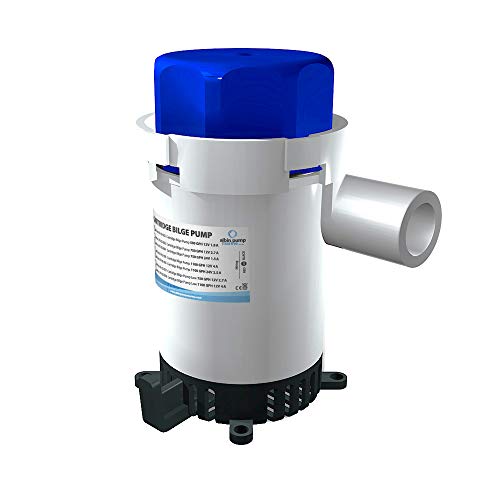

Albin 01-02-005 Cartridge Bilge Pump 1100 GPH 12V Marine Submersible

The Albin 01-02-005 is a submersible cartridge bilge pump designed for marine applications, delivering reliable water removal with a capacity of 1100 GPH (75 L/min) at free flow and 1000 GPH (65 L/min) at 3-foot head. Built with a stainless steel shaft and compact design, this 12V pump is ideal for pleasure boats ranging from 25 to 30 feet.

Key Features:

• Durable thermoplastic ABS housing with detachable universal base plate
• Integrated strainer and pin for T-slot mounting
• Replaceable cartridge motor for easy maintenance and extended service life
• Attachment point for level switch to enable automatic operation
• Low power consumption at 4A draw
• Stainless steel shaft for corrosion resistance

Specifications:

• Voltage: 12V DC
• Flow Rate: 1100 GPH free flow, 1000 GPH at 3 ft head
• Current Draw: 4 amps
• Recommended Fuse: 5A
• Discharge Port: Fixed 29mm (1.15") straight outlet
• Recommended Boat Length: 25-30 feet

The compact, submersible design makes installation straightforward, while the replaceable cartridge system allows for quick motor replacement without removing the entire pump assembly. The universal base plate with integrated strainer provides versatile mounting options and debris protection.
